.8C25BHCS

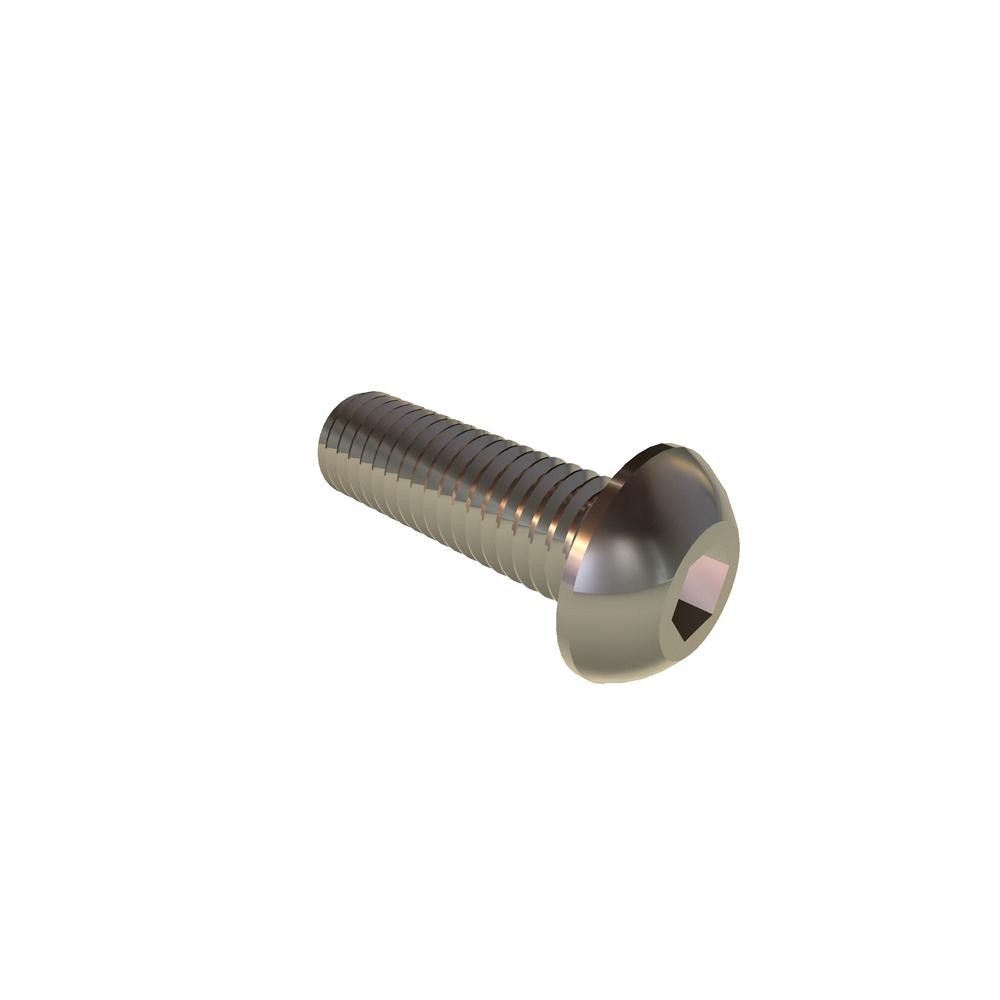

M8-1.25 X 25 BUT SOC SST RoHS
Alternate Codes: 080243
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.633 | $0.403 | $0.370 | $0.341 | $0.288 | Larger Quantities |
In Stock
| Thread Size | M8x1.25 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 8 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 8.80 mm |
| Fillet Transition Diameter (Max.) | 9.20 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Key Engagement | 2.60 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92095A286 |
| Length | 25mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 14.00 mm |
| Head Diameter (Min.) | 13.57 mm |
| Head Height (Max.) | 4.40 mm |
| Head Height (Min.) | 4.05 mm |
| Hex Socket Size | 5.00 mm |
