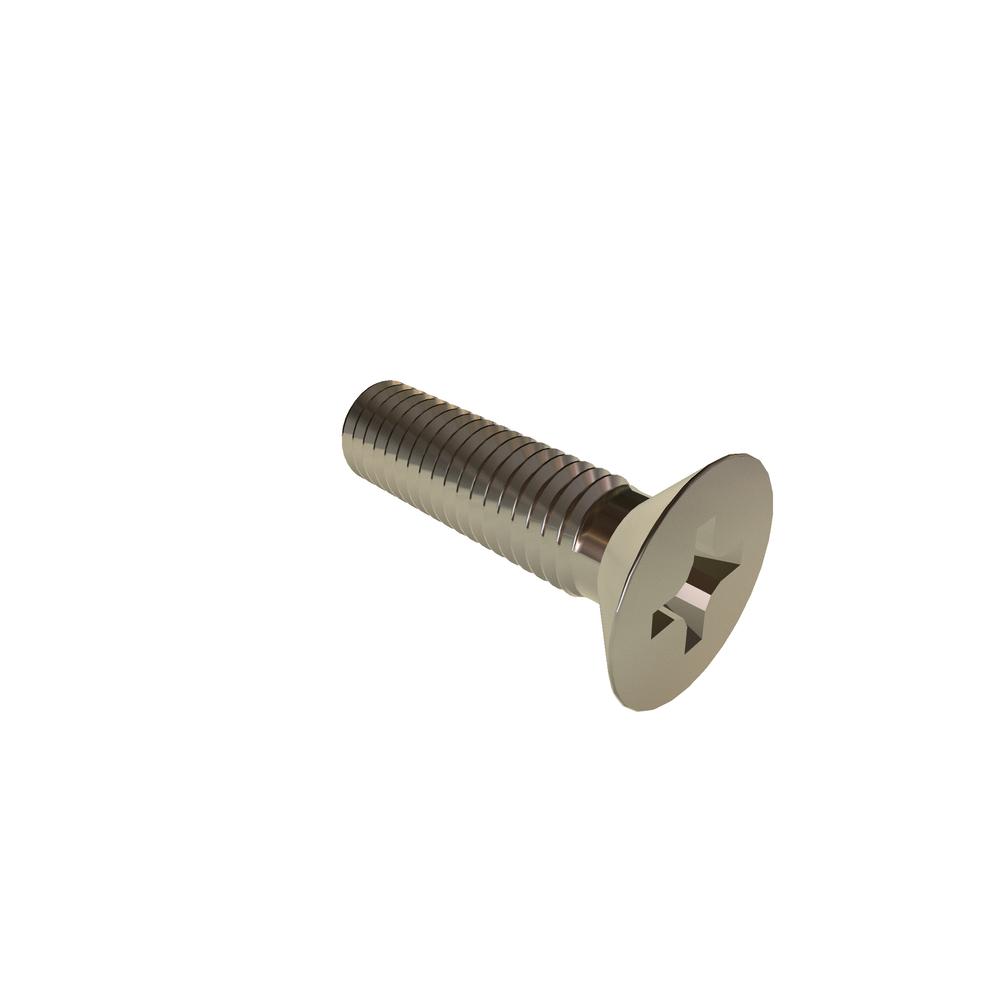

M8-1.25 X 30 PHIL FLAT VENTED SST RoHS

.8C30PFMS/V

Item Id.8C30PFMS/V
DescriptionM8-1.25 X 30 PHIL FLAT VENTED SST RoHS
Extended Description25 PER BAG
PackagingEA
BrandVARIED
Drive Size4
Drive TypePhillips
FinishPlain
Head Diameter (Max.)15.80 mm
Head Diameter (Min.)15.37 mm
Head Height4.60 mm
Length30mm
MaterialStainless Steel
Meets (Standard)ASME B18.6.7M
Nominal Diameter8.00 mm
Recess Depth (Max.)4.60 mm
Recess Depth (Min.)4.0 mm
RoHSCompliant
Thread SizeM8x1.25
Thread TypeMetric Coarse
TypeFlat Head Vented
UnitsMetric
Vent Hole Diameter2.00 mm
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
