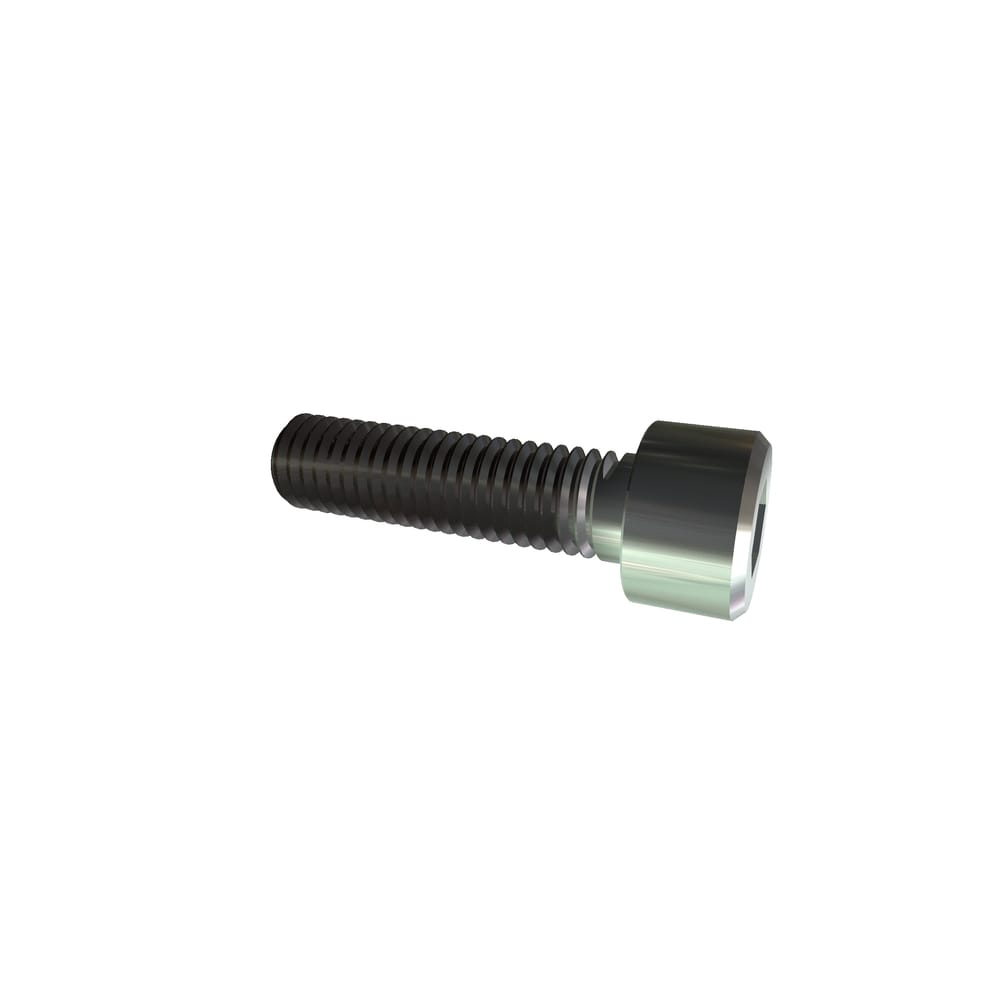

Image for reference purposes only. Actual product may vary.
.8C30SHCS/V
M8-1.25 X 30 SOC CAP VNT SST RoHS
Alternate Codes: 93235A354
M8-1.25 X 30 Socket Head Cap Vented Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 8.00 mm |
| Length | 30mm |
| Thread Size | M8x1.25 |
| Finish | Plain |
| Material | Stainless Steel |
| Type | Vented Socket Cap |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 4.00 mm |
| Additional Industry Cross Reference | 93235A354 |
| RoHS | Compliant |
| Body Diameter (Max.) | 8.00 mm |
| Head Diameter (Max.) | 13.00 mm |
| Head Diameter (Min.) | 12.70 mm |
| Head Height (Max.) | 8.00 mm |
| Head Height (Min.) | 7.83 mm |
| Hex Socket Size | 6.00 mm |
| Vent Hole Diameter | 2.00 mm |
