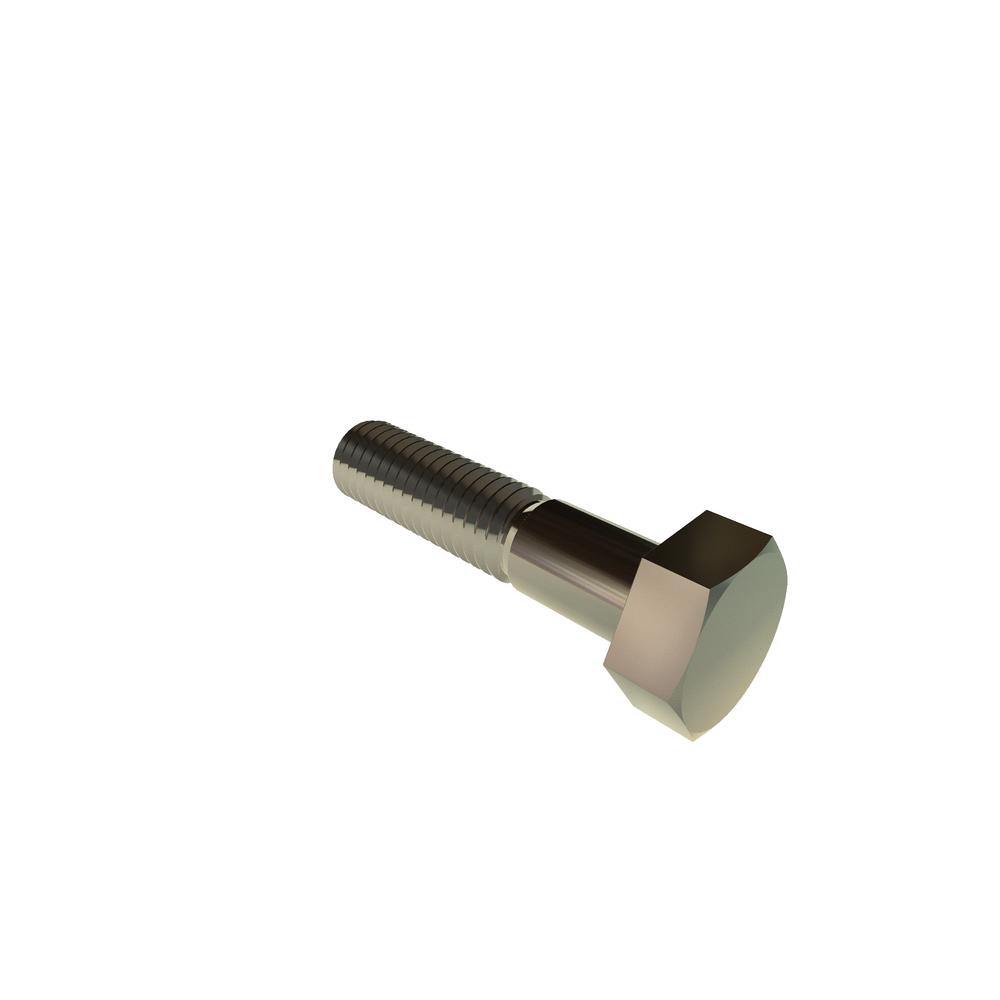

Image for reference purposes only. Actual product may vary.
.8C35HHDS
M8-1.25 X 35 HX HD SST RoHS
Alternate Codes: 20-00436-00
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.774 | $0.493 | $0.452 | $0.417 | $0.352 | Larger Quantities |
In Stock
Maximum stock already in cart
| Meets (Standard) | ASME B18.2.3.5M |
| Length | 35mm |
| Thread Size | M8x1.25 |
| Head Height (Min.) | 5.10 mm |
| Body Diameter (Max.) | 8.58 mm |
| Head Height (Max.) | 5.68 mm |
| Body Diameter (Min.) | 7.42 mm |
| Nominal Thread Size | 8.00 mm |
| Width Across Flat (Min.) | 12.57 mm |
| Thread Type | Metric Coarse |
| Material | Stainless Steel |
| Width Across Flat (Max.) | 13.00 mm |
| RoHS | Compliant |
| Finish | Plain |
| Head Type | Hex |
| Grade | Other |
| Brand | VARIED |
| Units | Metric |
