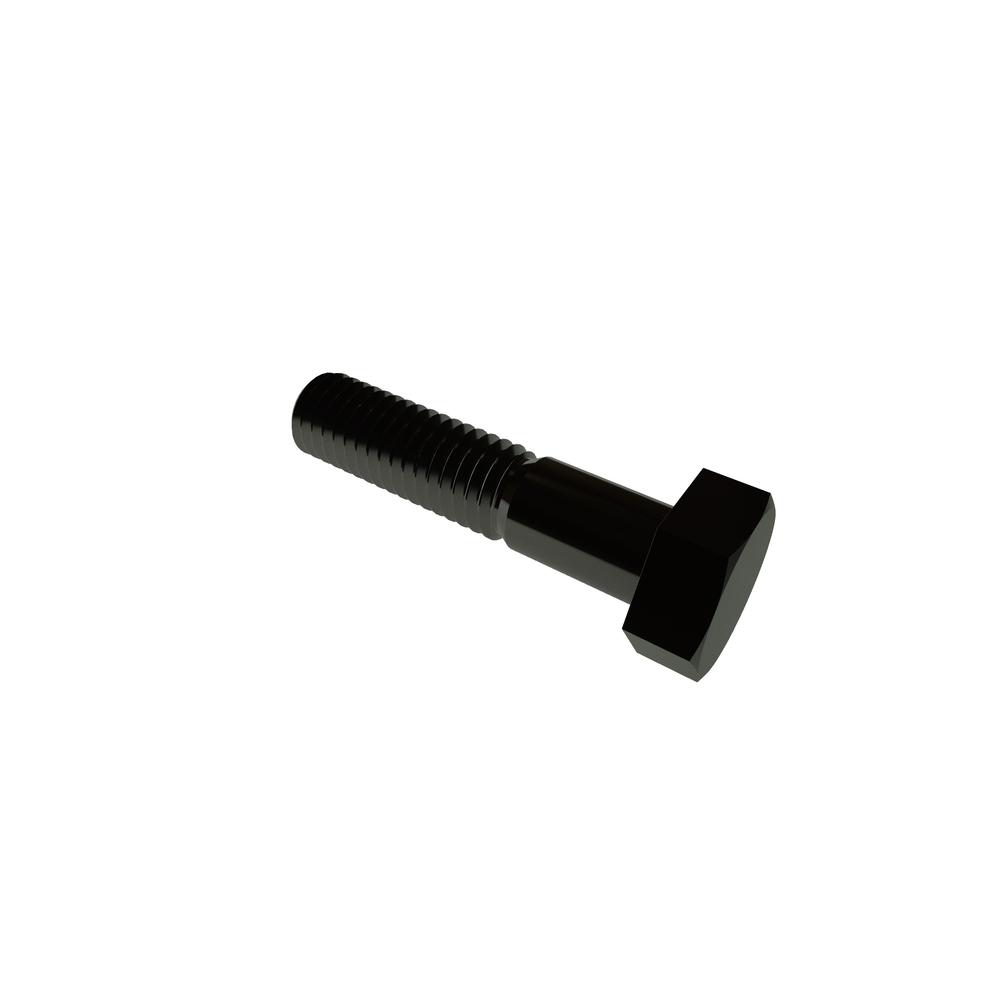

Image for reference purposes only. Actual product may vary.
.8C35HHDWR
M8-1.25 X 35 HX HD 8.8 ZN CR3
Alternate Codes: .8C35HHDWt/931
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Meets (Standard) | ASME B18.2.3.5M |
| Length | 35mm |
| Thread Size | M8x1.25 |
| Head Height (Min.) | 5.10 mm |
| Body Diameter (Max.) | 8.58 mm |
| Head Height (Max.) | 5.68 mm |
| Additional Industry Cross Reference | 91280A540 |
| Body Diameter (Min.) | 7.42 mm |
| Nominal Thread Size | 8.00 mm |
| Width Across Flat (Min.) | 12.57 mm |
| Thread Type | Metric Coarse |
| Material | Steel |
| Width Across Flat (Max.) | 13.00 mm |
| RoHS | Compliant |
| Finish | Zinc Clear |
| Head Type | Hex |
| Grade | 8.8 |
| Brand | VARIED |
| Units | Metric |
