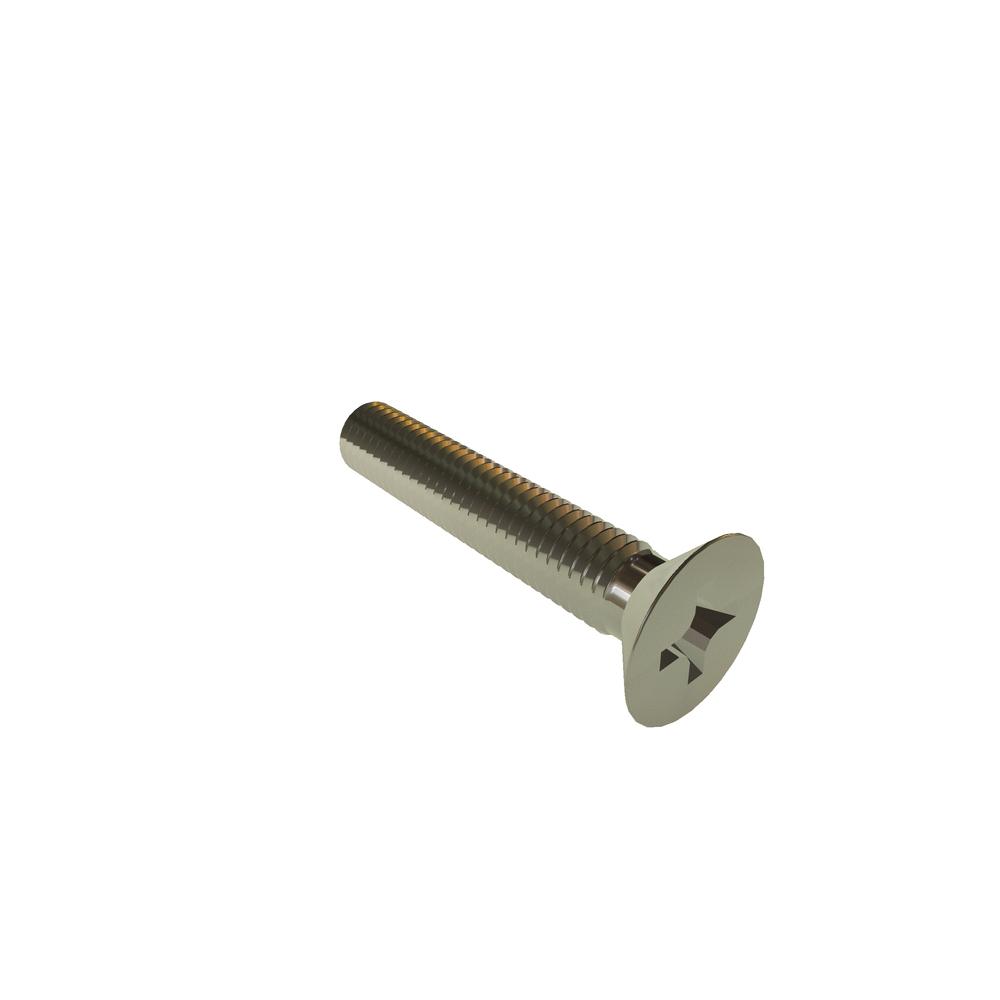

.8C45PFMS
M8-1.25 X 45 PHIL FLAT SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M8x1.25 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 8.00 mm |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 4 |
| Recess Diameter | 8.9 mm |
| Head Height | 4.60 mm |
| Recess Depth (Min.) | 4.0 mm |
| Recess Depth (Max.) | 4.60 mm |
| Recess Width | 1.80 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92010A544 |
| Length | 45mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 15.80 mm |
| Head Diameter (Min.) | 15.37 mm |
