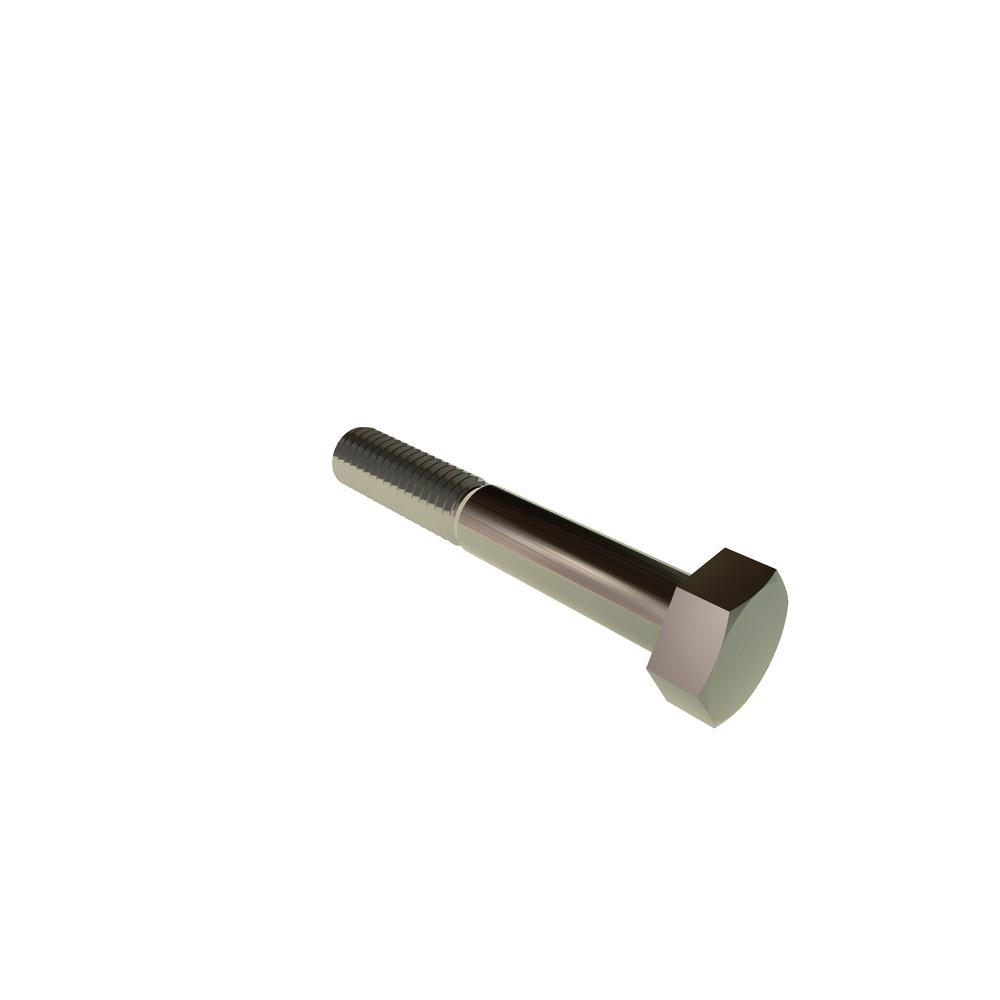

.8C50HHDS
M8-1.25 X 50 HX HD SST RoHS
Alternate Codes: N/A
PARTIAL THD
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.830 | $0.528 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M8x1.25 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Hex |
| Body Diameter (Min.) | 7.42 mm |
| Nominal Thread Size | 8.00 mm |
| Grade | Other |
| Brand | VARIED |
| Additional Industry Cross Reference | 91287A158 |
| Length | 50mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.3.5M |
| Body Diameter (Max.) | 8.58 mm |
| Head Height (Max.) | 5.68 mm |
| Head Height (Min.) | 5.10 mm |
| Width Across Flat (Max.) | 13.00 mm |
| Width Across Flat (Min.) | 12.57 mm |
