.8CFLNS/W

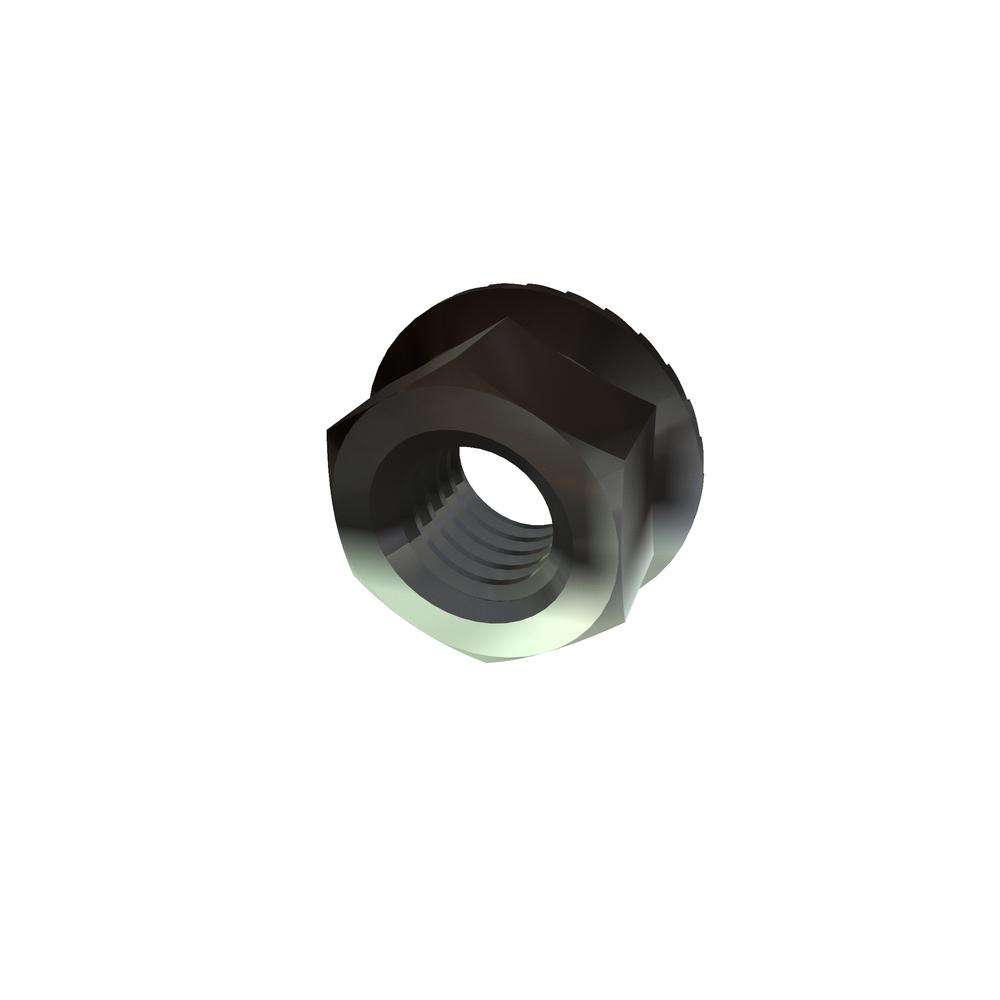

M8-1.25 FLANGE NUT WHIZLOK SST RoHS
Alternate Codes: 97400A102
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.884 | $0.486 | $0.405 | $0.347 | $0.286 | Larger Quantities |
In Stock
| Thread Size | M8x1.25 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 8.00 mm |
| Flange Diameter (Min.) | 15.80 mm |
| Flange Diameter (Max.) | 17.90 mm |
| Flange Thickness (Min.) | 1.20 mm |
| Wrenching Height (Min.) | 4.60 mm |
| Brand | VARIED |
| Type | Flange Nut Whizlok |
| Additional Industry Cross Reference | 97400A102 |
| RoHS | Compliant |
| Meets (Standard) | ISO 4161 |
| Head Thickness (Max.) | 8.00 mm |
| Head Thickness (Min.) | 7.64 mm |
| Width Across Flat (Max.) | 13.00 mm |
| Width Across Flat (Min.) | 12.73 mm |
