  • Item Id: .8R12SHBA

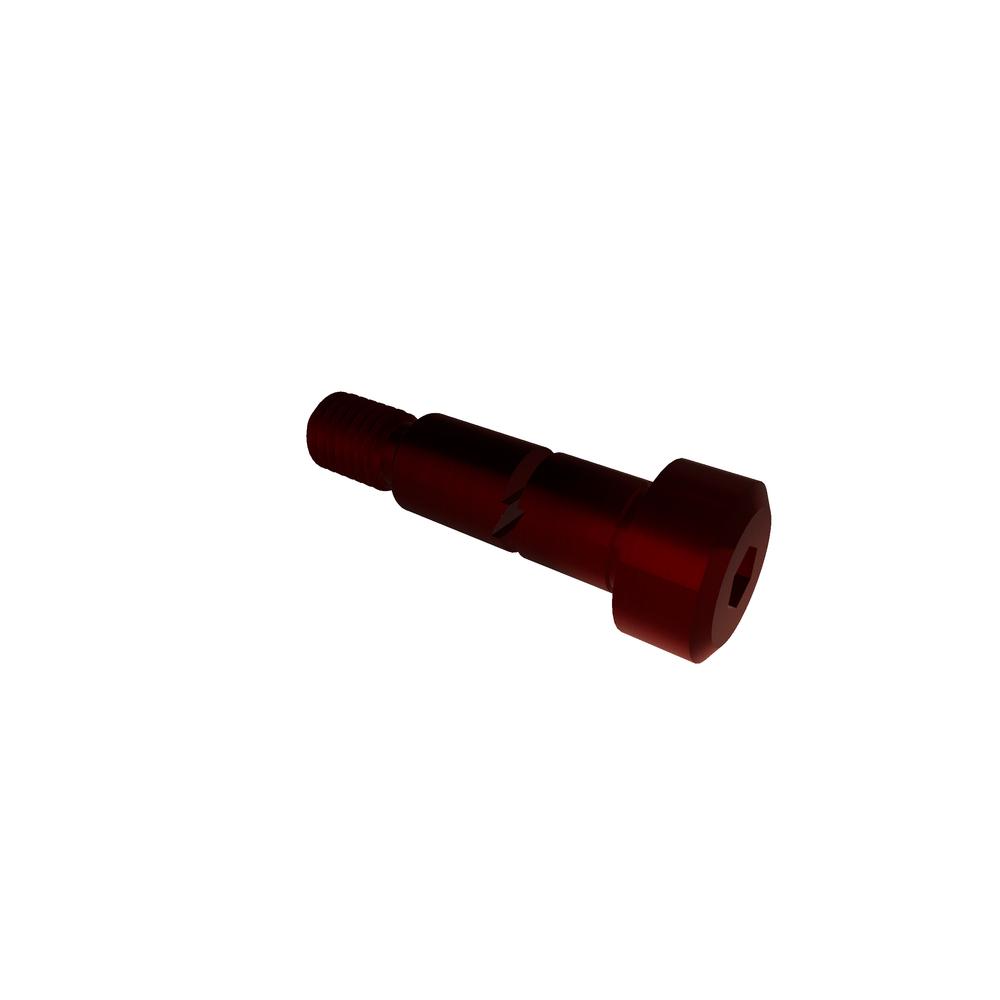

  • Description: M8 X 12 SHLDR BOLT ALLOY
  • Alternate Codes: 92981A201
  • Quantity Discounts:
    1 to 4950 to 99100 to 249250 to 499Call For
    $1.846$1.420$1.154$1.025Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92981A201
    BrandVARIED
    FinishPlain
    Head Diameter (Max.)13.00 mm
    Head Diameter (Min.)12.73 mm
    Head Height (Max.)5.50 mm
    Head Height (Min.)5.32 mm
    Head Side Height (Min.)0.80 mm
    Hex Socket Size4.00 mm
    Key Engagement3.30 mm
    MaterialAlloy
    Meets (Standard)ASME B18.3.3M-1986 (2002)
    Nominal Diameter6.00 mm
    Nominal Shoulder Diameter8.00 mm
    Shoulder DiameterM8
    Shoulder Diameter (Max.)7.99 mm
    Shoulder Diameter (Min.)7.95 mm
    Thread Length11.250 mm
    Thread SizeM6x1
    Thread TypeMetric Coarse
    TypeShoulder Bolt
    UnitsMetric
