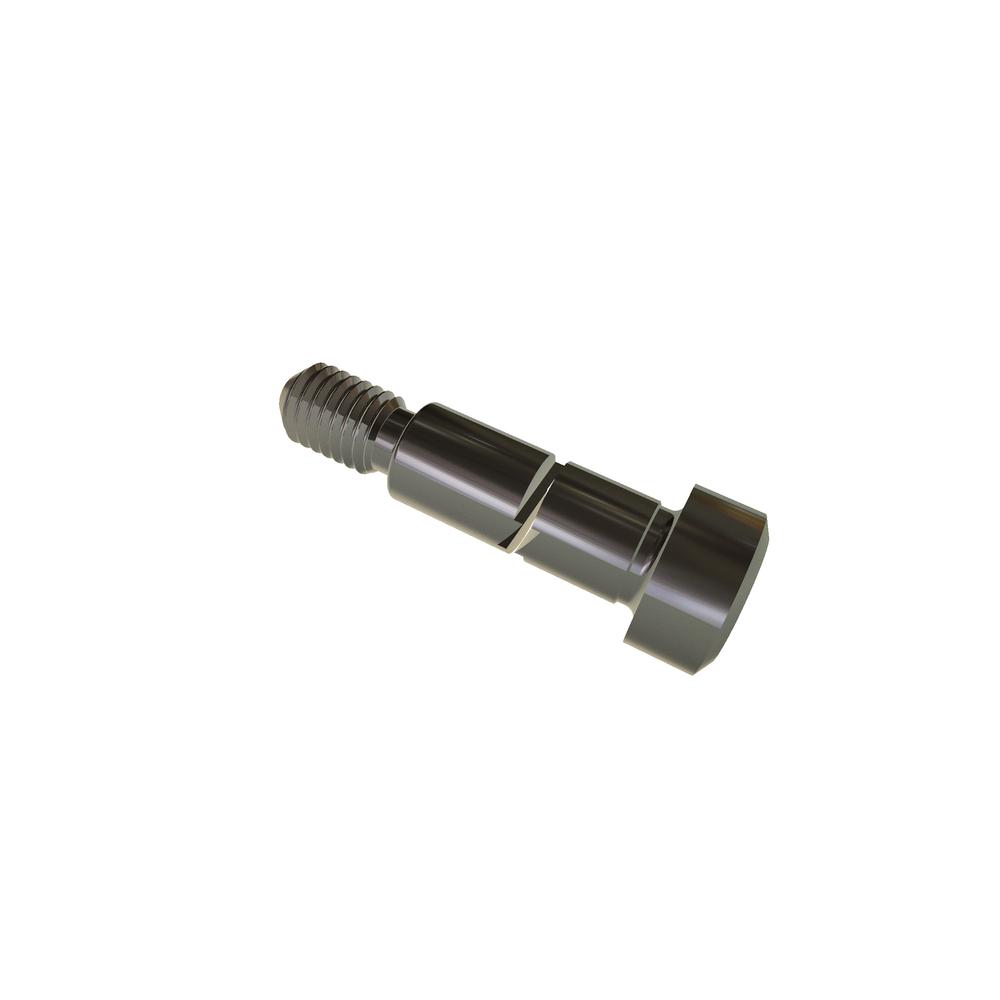

Image for reference purposes only. Actual product may vary.
.8R35SHBS
M8 X 35 SHLDR BOLT SST RoHS
Alternate Codes: N/A
M6-1.0 THREAD
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 6.00 mm |
| Length | 35mm |
| Thread Size | M6x1 |
| Finish | Plain |
| Nominal Shoulder Diameter | 8.00 mm |
| Material | Stainless Steel |
| Thread Length | 11.250 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 3.30 mm |
| Head Side Height (Min.) | 0.80 mm |
| Shoulder Diameter | M8 |
| Shoulder Diameter (Min.) | 7.95 mm |
| Shoulder Diameter (Max.) | 7.99 mm |
| Brand | VARIED |
| Type | Shoulder Bolt |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Head Diameter (Max.) | 13.00 mm |
| Head Diameter (Min.) | 12.73 mm |
| Head Height (Max.) | 5.50 mm |
| Head Height (Min.) | 5.32 mm |
| Hex Socket Size | 4.00 mm |
