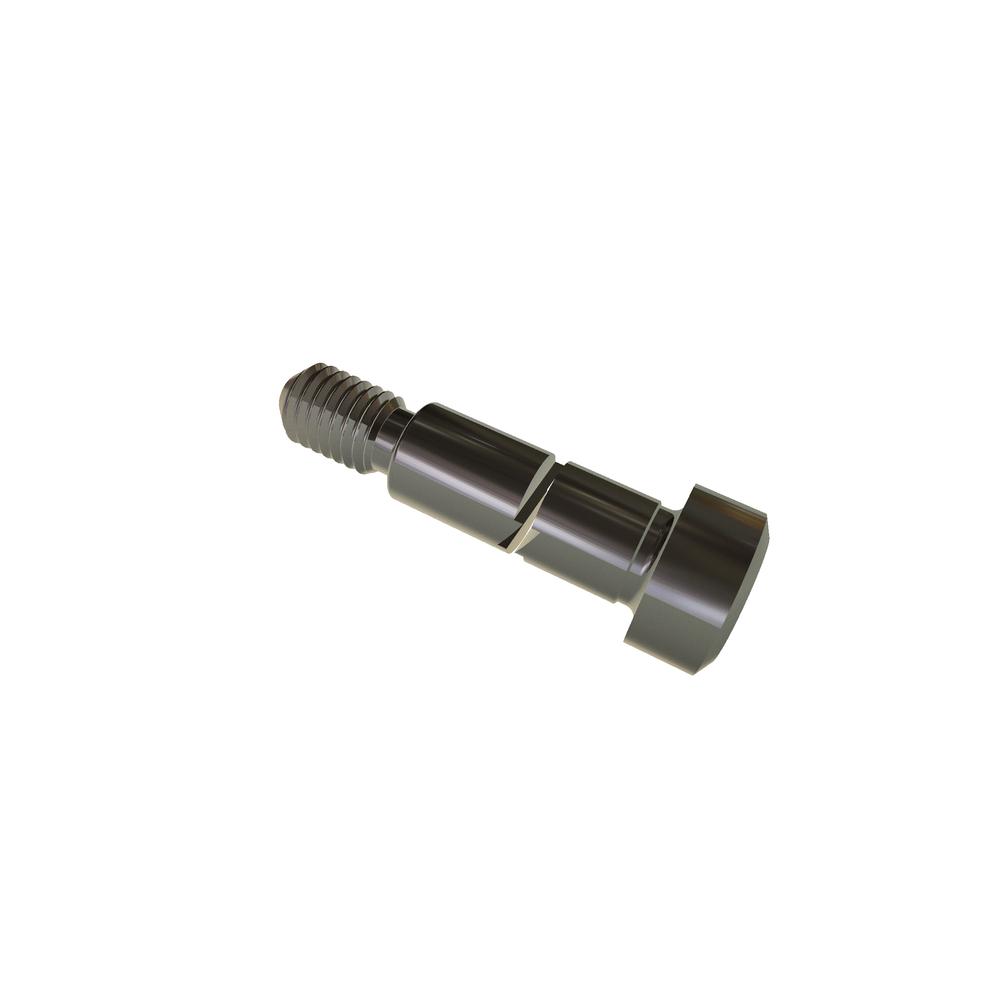

Image for reference purposes only. Actual product may vary.
.8R45SHBS
M8 X 45 SHLDR BOLT SS
Alternate Codes: N/A
ISO 7379 passivated
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs |
|---|---|---|---|
| $5.049 | $4.216 | $3.757 | $3.400 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 6.00 mm |
| Length | 45mm |
| Thread Size | M6x1 |
| Finish | Plain |
| Nominal Shoulder Diameter | 8.00 mm |
| Material | Stainless Steel |
| Thread Length | 11.250 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 3.30 mm |
| Head Side Height (Min.) | 0.80 mm |
| Shoulder Diameter | M8 |
| Shoulder Diameter (Min.) | 7.95 mm |
| Shoulder Diameter (Max.) | 7.99 mm |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Head Diameter (Max.) | 13.00 mm |
| Head Diameter (Min.) | 12.73 mm |
| Head Height (Max.) | 5.50 mm |
| Head Height (Min.) | 5.32 mm |
| Hex Socket Size | 4.00 mm |
