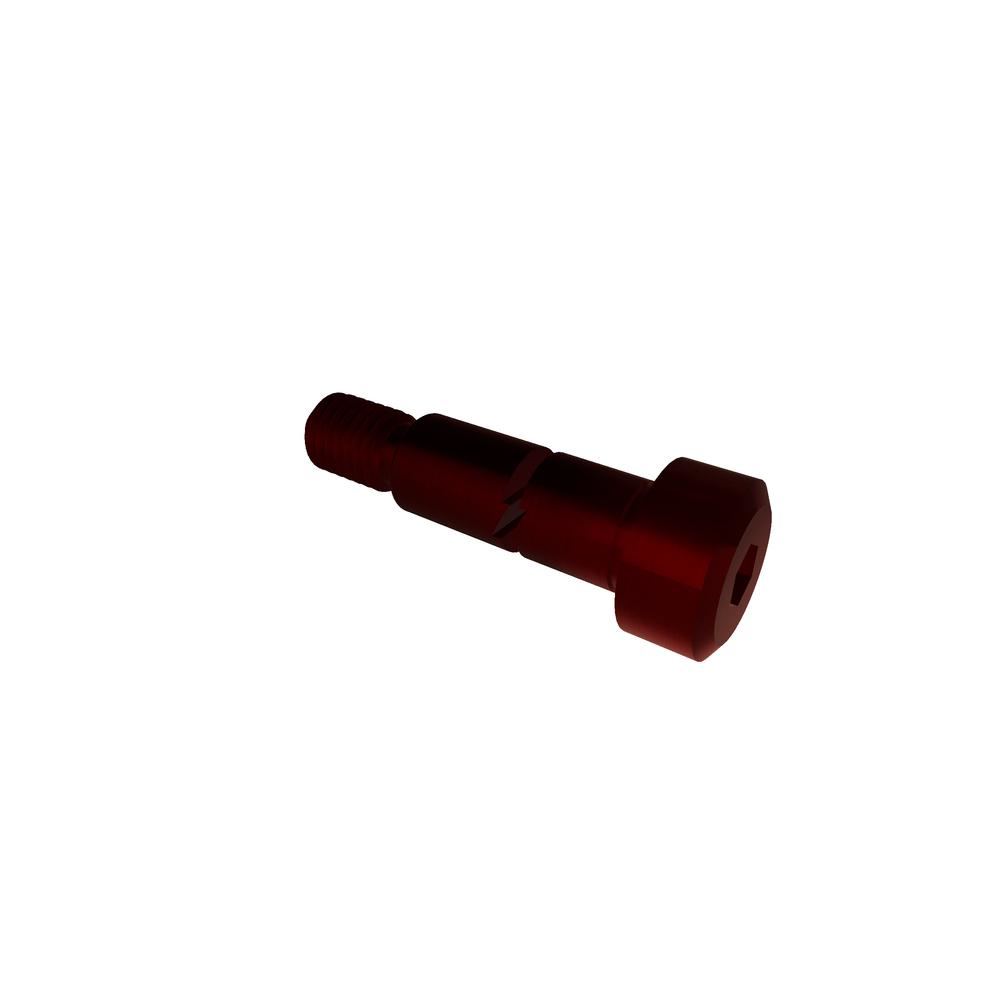

M8 X 50 SHLDR BOLT ISO7379 12.9 ALLOY
.8R50SHBA
| Item Id | .8R50SHBA |
| Description | M8 X 50 SHLDR BOLT ISO7379 12.9 ALLOY |
| Alternate Codes | 92981A207 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92981A207 |
| Brand | VARIED |
| Finish | Plain |
| Head Diameter (Max.) | 13.00 mm |
| Head Diameter (Min.) | 12.73 mm |
| Head Height (Max.) | 5.50 mm |
| Head Height (Min.) | 5.32 mm |
| Head Side Height (Min.) | 0.80 mm |
| Hex Socket Size | 4.00 mm |
| Key Engagement | 3.30 mm |
| Length | 50mm |
| Material | Alloy |
| Meets (Standard) | ASME B18.3.3M-1986 (2002) |
| Nominal Diameter | 6.00 mm |
| Nominal Shoulder Diameter | 8.00 mm |
| Shoulder Diameter | M8 |
| Shoulder Diameter (Max.) | 7.99 mm |
| Shoulder Diameter (Min.) | 7.95 mm |
| Thread Length | 11.250 mm |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Type | Shoulder Bolt |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
