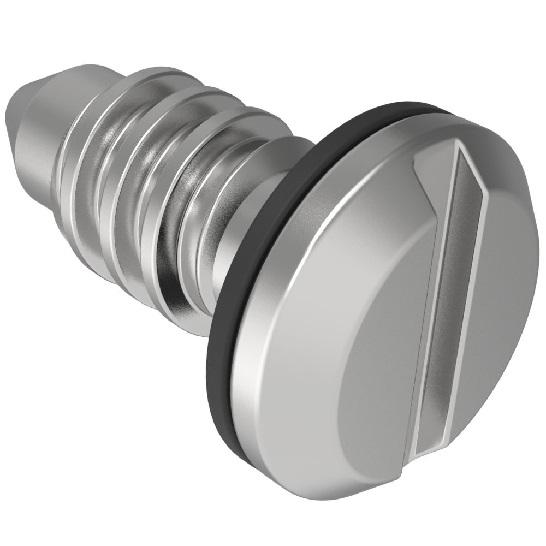

SOUTHCO QUICK OPING CAPTV SCR RoHS
09-11-102-11
Item Id | 09-11-102-11 |
Description | SOUTHCO QUICK OPING CAPTV SCR RoHS |
Extended Description | |
Packaging | EA |
Brand | SOUTHCO |
Drive Type | Slotted |
Finish | Zinc Plated, Chromate Plus Sealer |
Head Diameter | 7.70 mm |
Head Height | 1.80 mm |
Material | Low Carbon Steel, Case Hardened |
Panel Thickness | 0.90 mm |
Point Length | 3.20 mm |
Slot Width | 1.30 mm |
Thread Length | 5.0 mm |
Thread Major Diameter | 4.8 mm |
Thread Minor Diameter | 3.5 mm |
Total Material Thickness (Max.) | 3.2 mm |
Total Material Thickness (Min.) | 1.3 mm |
Type | Quick Opening Captive Screw |
Under Cut | 2.50 mm |
Units | Metric |
Washer Material | Nylon |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
