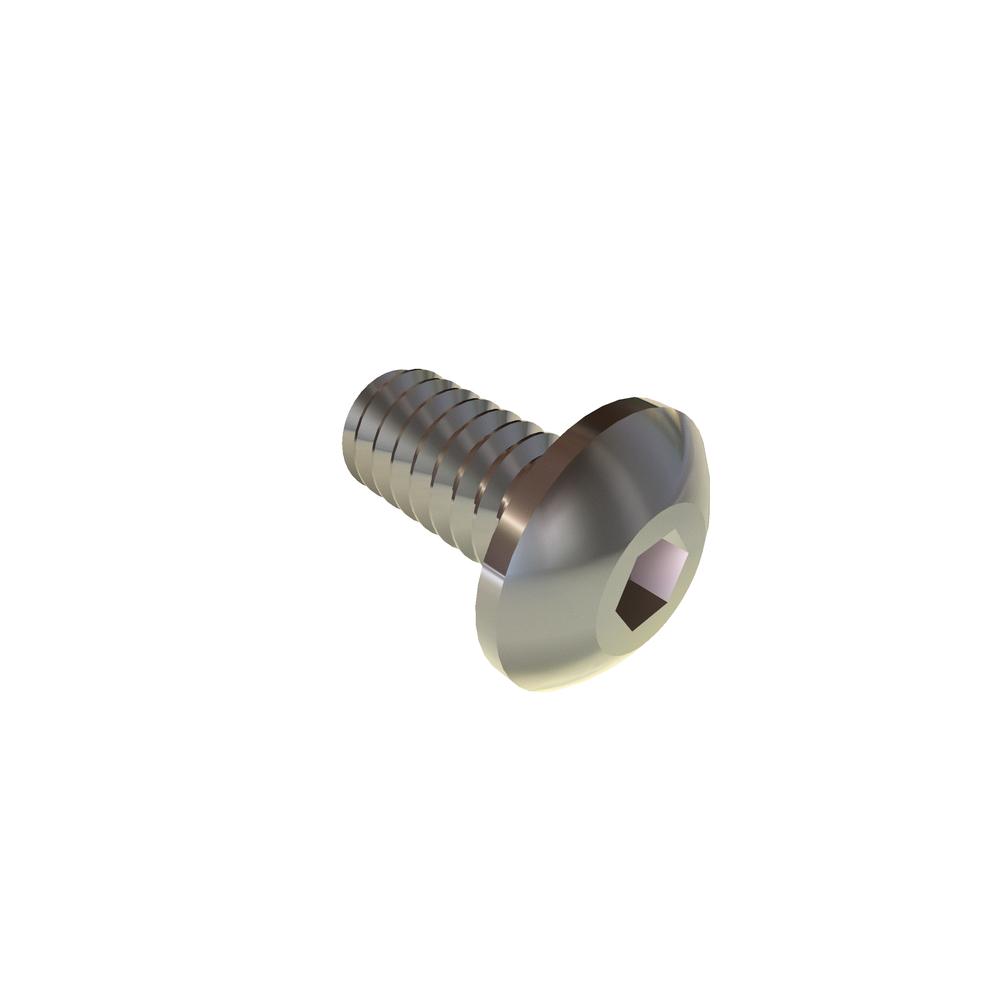

0-80 X 1/8 BUT SOC SST RoHS
0F12BHCS
| Item Id | 0F12BHCS |
| Description | 0-80 X 1/8 BUT SOC SST RoHS |
| Alternate Codes | 11250 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92949A050 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 0.080in |
| Fillet Transition Diameter (Min.) | 0.070in |
| Finish | Plain |
| Head Diameter (Max.) | 0.114in |
| Head Diameter (Min.) | 0.104in |
| Head Height (Max.) | 0.032in |
| Head Height (Min.) | 0.026in |
| Head Side Height (Ref.) | 0.010in |
| Head Type | Button |
| Hex Socket Size | 0.035in |
| Key Engagement | 0.020in |
| Length | 1/8in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3 |
| Nominal Diameter | 0.06in |
| RoHS | Compliant |
| Thread Size | 0-80 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
