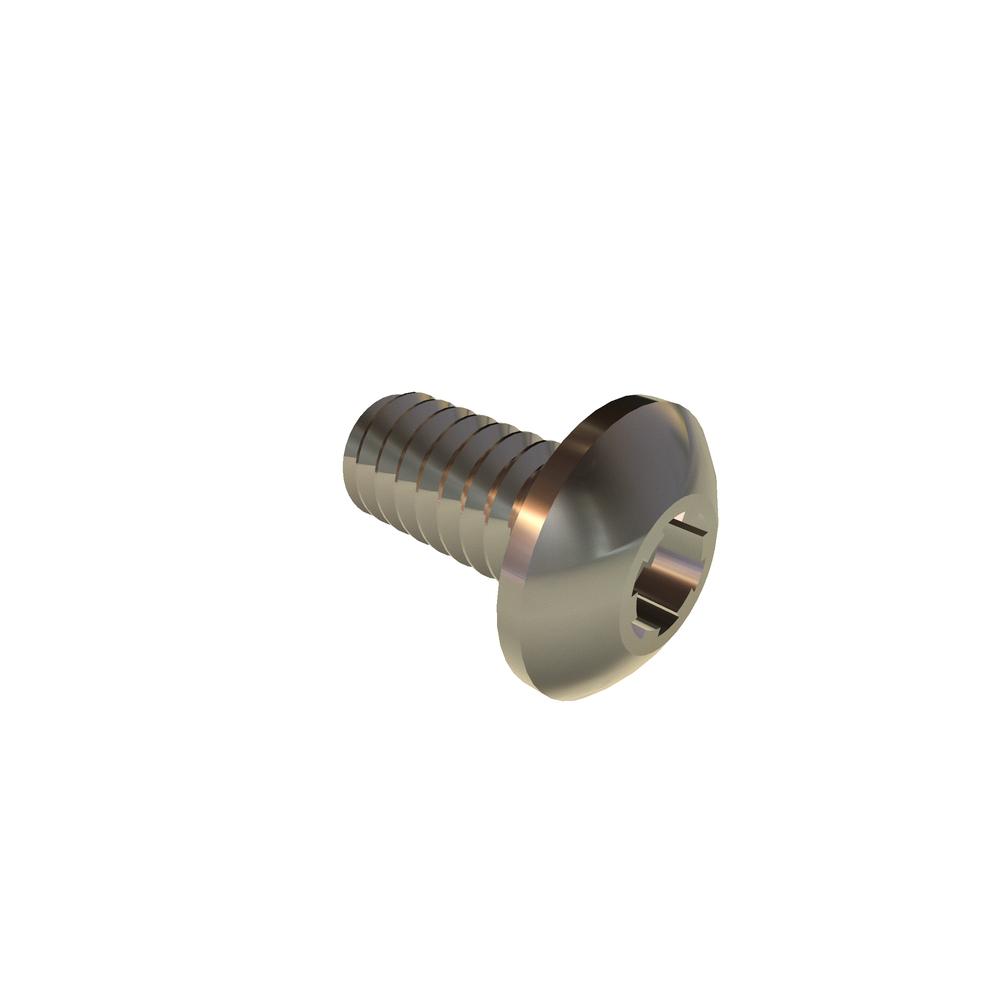

Image for reference purposes only. Actual product may vary.
0F12BHCS/SP
0-80 X 1/8 BUT SOC SPLINE SST RoHS
Alternate Codes: N/A
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 0.06in |
| Length | 1/8in |
| Thread Size | 0-80 |
| Finish | Plain |
| Material | Stainless Steel |
| Head Type | Button |
| Drive Type | Spline Socket |
| Head Height (Max.) | 0.032in |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Fillet Transition Diameter (Min.) | 0.070in |
| Fillet Transition Diameter (Max.) | 0.080in |
| Head Side Height (Ref.) | 0.010in |
| Key Engagement | 0.020in |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.114in |
| Head Diameter (Min.) | 0.104in |
| Head Height (Min.) | 0.026in |
| Spline Socket Size | 0.048in |
