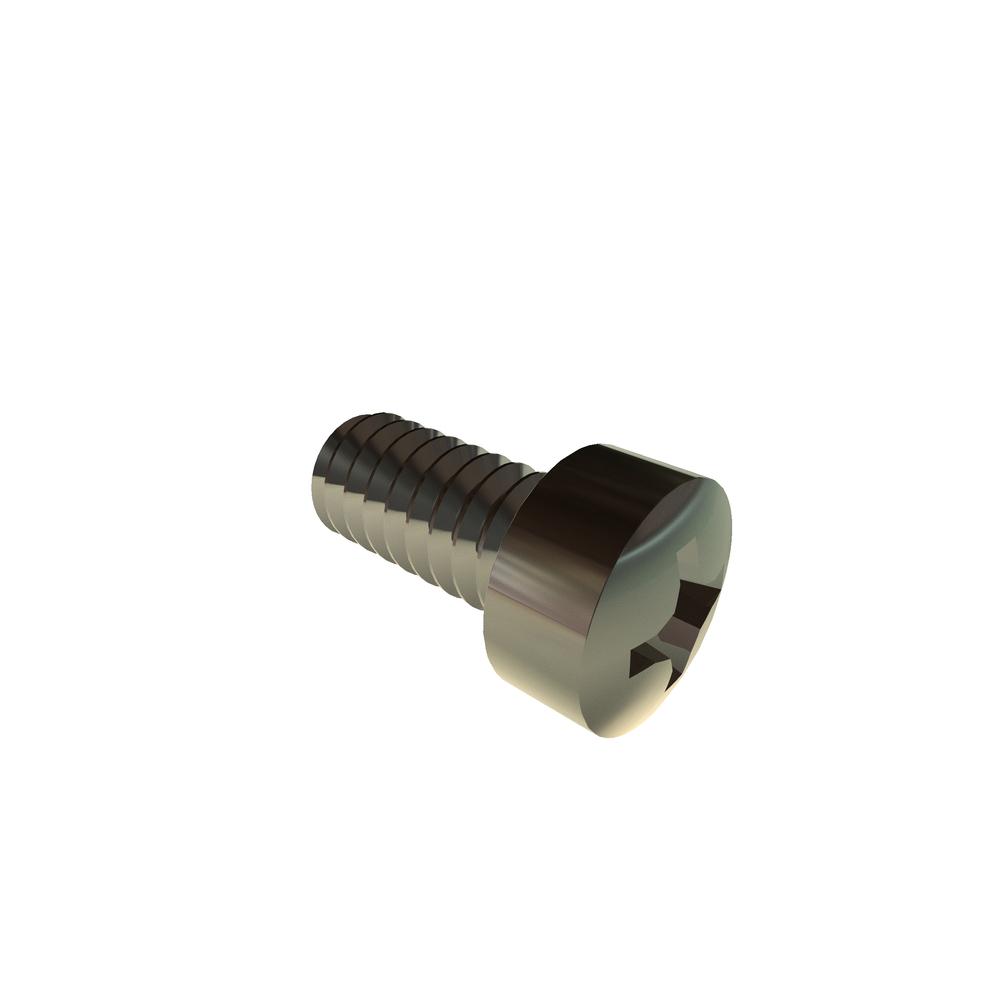

0-80 X 1/8 PHIL FILL SST RoHS
0F12PFIS
| Item Id | 0F12PFIS |
| Description | 0-80 X 1/8 PHIL FILL SST RoHS |
| Alternate Codes | 91794A052 |
| Extended Description | 0-80 X 1/8 Phillips Fillister head Stainless Steel RoHS3 |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | #0 |
| Drive Type | Phillips |
| Head Diameter (Max.) | 0.096in |
| Head Diameter (Min.) | 0.083in |
| Head Height (Max.) | 0.055in |
| Head Height (Min.) | 0.047in |
| Head Side Height (Max.) | 0.043in |
| Head Side Height (Min.) | 0.038in |
| Head Type | Fillister |
| Length | 0.12in |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.060in |
| Recess Depth (Max.) | 0.032in |
| Recess Depth (Min.) | 0.014in |
| Recess Diameter | 0.060in |
| RoHS | Compliant |
| Thread Type | Unified Fine Thread (UNF) |
