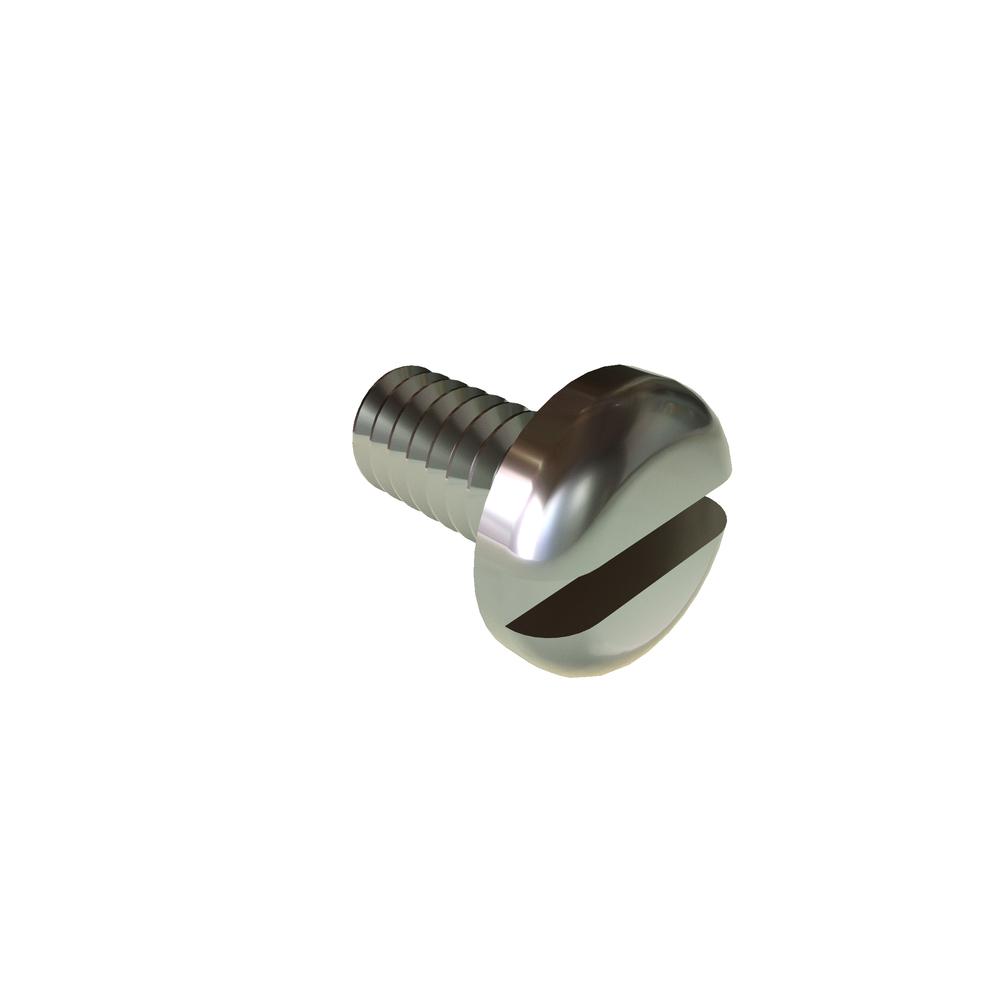

0-80 X 1/8 SLOT PAN HD PASS SST RoHS
0F12SPMS/PASS
| Item Id | 0F12SPMS/PASS |
| Description | 0-80 X 1/8 SLOT PAN HD PASS SST RoHS |
| Extended Description | 0-80 X 1/8 SLOT Pan Head Head Passivated Stainless Steel RoHS3 |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Passivated |
| Head Diameter (Max.) | 0.116in |
| Head Diameter (Min.) | 0.104in |
| Head Height (Max.) | 0.039in |
| Head Height (Min.) | 0.031in |
| Head Radius (Min.) | 0.020in |
| Head Type | Pan |
| Length | 0.12in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.060in |
| RoHS | Compliant |
| Slot Depth (Max.) | 0.022in |
| Slot Depth (Min.) | 0.014in |
| Slot Width (Max.) | 0.023in |
| Slot Width (Min.) | 0.016in |
| Thread Size | 0-80 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
