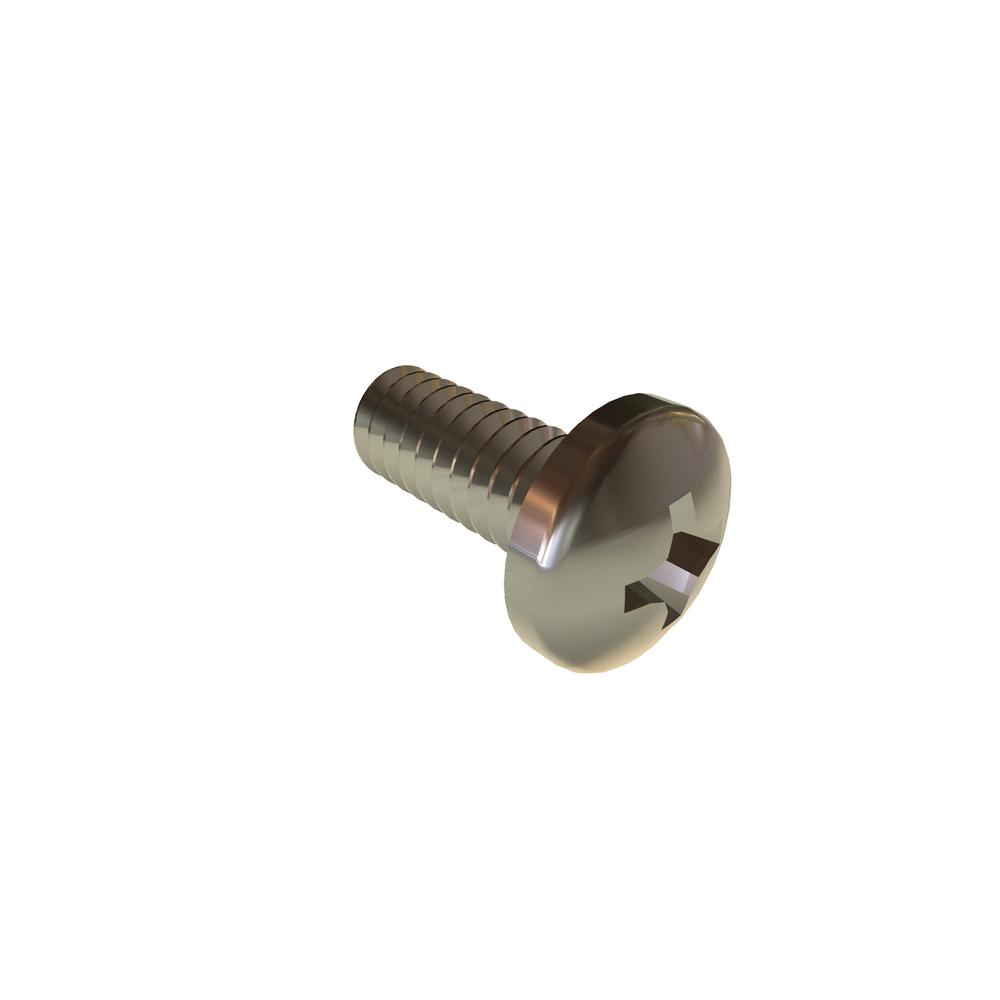

Image for reference purposes only. Actual product may vary.
0F15PPMS
0-80 X 5/32 PH PAN SST RoHS
Alternate Codes: 300-13007
0-80 X 5/32 Phillips Pan Head Stainless Steel RoHS
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.078 | $0.048 | $0.035 | $0.027 | $0.025 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.15in |
| Thread Size | 0-80 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.060in |
| Head Type | Pan |
| Recess Diameter | 0.060in |
| Head Radius (Min.) | 0.005in |
| Recess Depth (Min.) | 0.014in |
| Recess Depth (Max.) | 0.032in |
| Additional Industry Cross Reference | 91772A051 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.116in |
| Head Diameter (Min.) | 0.104in |
| Head Height (Max.) | 0.044in |
| Head Height (Min.) | 0.036in |
