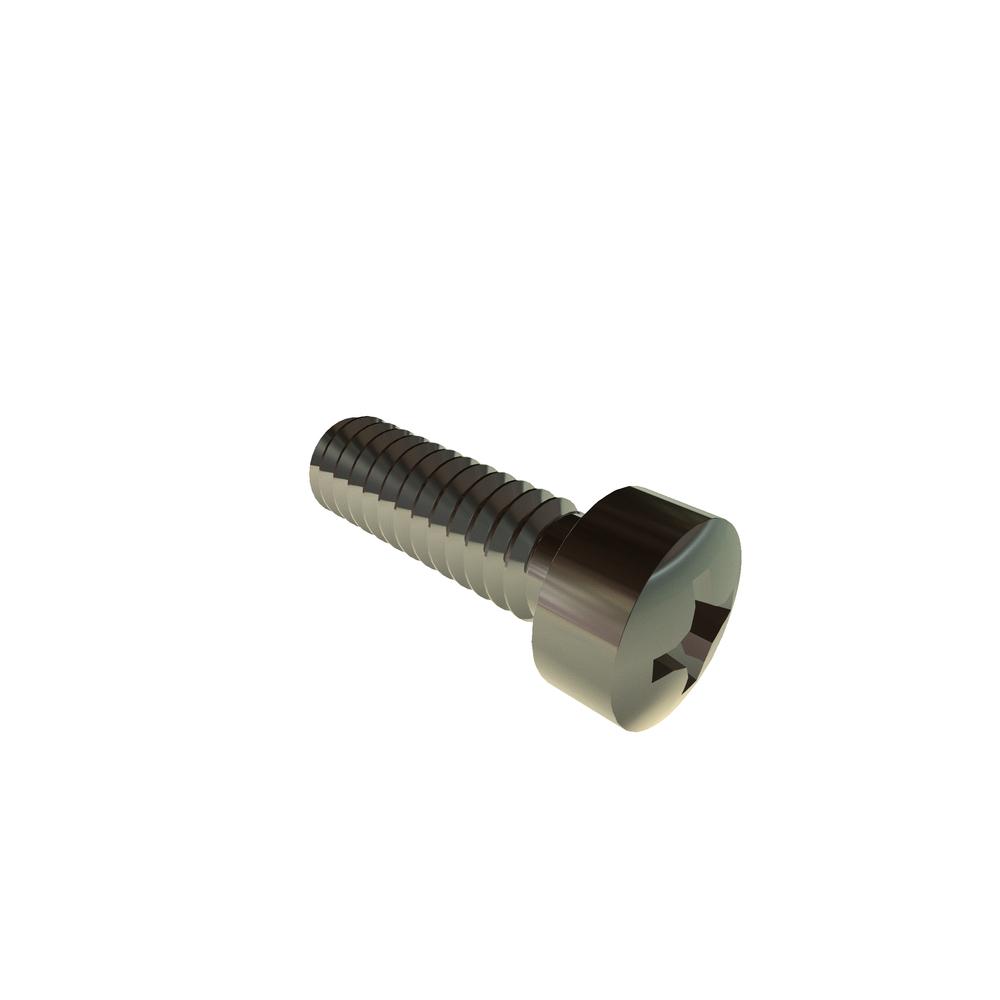

0F18PFIS
0-80 X 3/16 PHIL FILL SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.146 | $0.088 | $0.073 | $0.060 | $0.053 | Larger Quantities |
In Stock
| Thread Size | 0-80 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.060in |
| Head Type | Fillister |
| Drive Type | Phillips |
| Drive Size | #0 |
| Recess Diameter | 0.060in |
| Recess Depth (Min.) | 0.014in |
| Recess Depth (Max.) | 0.032in |
| Head Side Height (Min.) | 0.038in |
| Head Side Height (Max.) | 0.043in |
| Brand | VARIED |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.096in |
| Head Diameter (Min.) | 0.083in |
| Head Height (Max.) | 0.055in |
| Head Height (Min.) | 0.047in |
