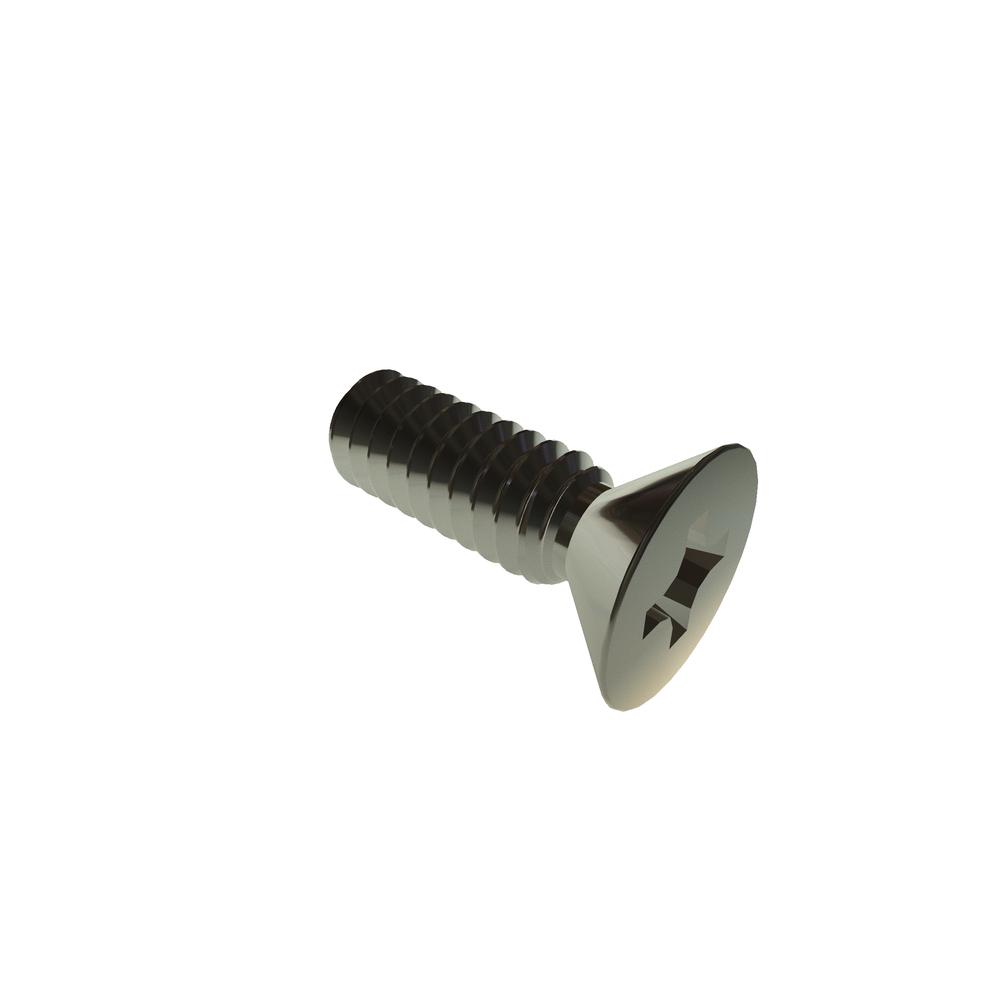

Image for reference purposes only. Actual product may vary.
0F18PFMS/P
0-80 X 3/16 PHIL FLAT PATCH SST RoHS
Alternate Codes: N/A
0-80 X 3/16 Phillips FLAT Head PATCH Stainless Steel RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 3/16in |
| Thread Size | 0-80 |
| Finish | Plain |
| Drive Type | Phillips |
| Locking Element | Patchlock |
| Material | Stainless Steel |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.060in |
| Head Type | Flat |
| Recess Diameter | 0.062in |
| Head Height | 0.035in |
| Recess Depth (Min.) | 0.020in |
| Recess Depth (Max.) | 0.036in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.112in |
| Head Diameter (Min.) | 0.096in |
