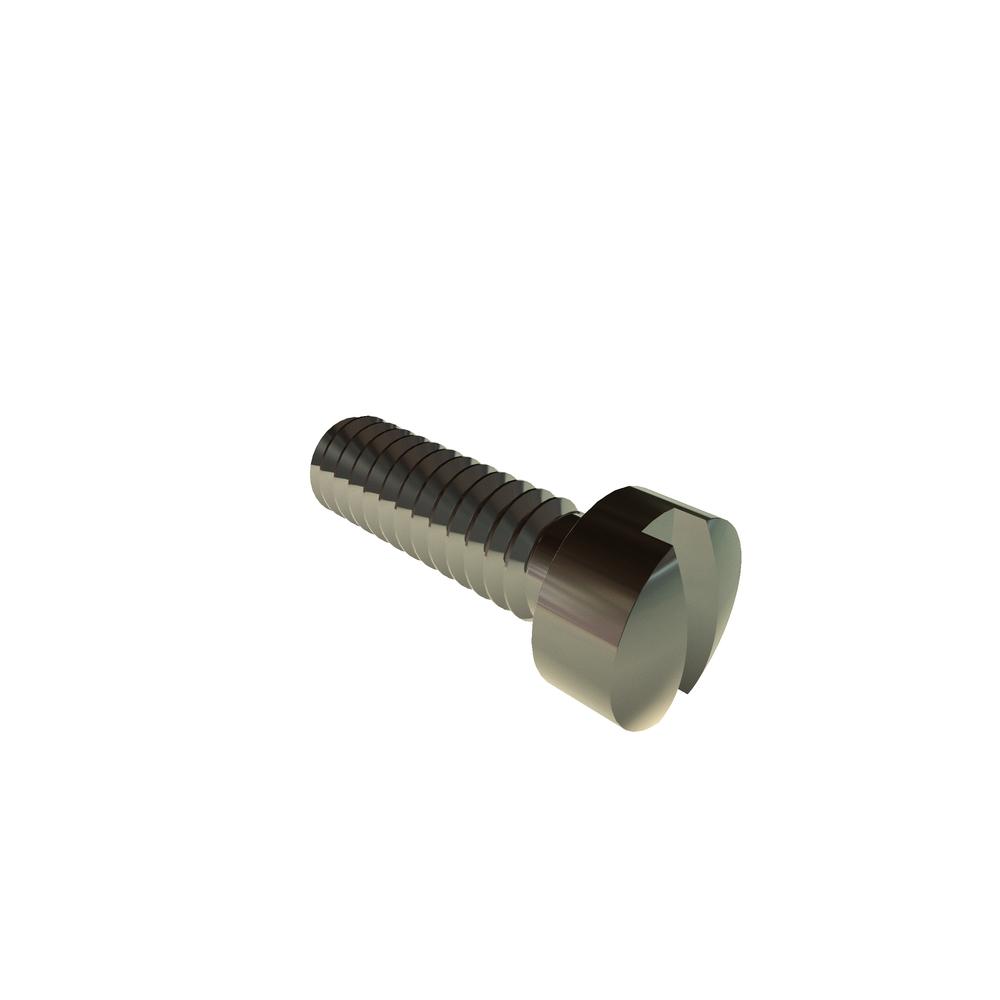

0F18SFIS
0-80 X 3/16 SLOT FILL SST RoHS
Alternate Codes: 1107-0300
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.260 | $0.137 | $0.108 | $0.100 | $0.084 | Larger Quantities |
In Stock
| Thread Size | 0-80 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.060in |
| Head Type | Fillister |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.015in |
| Slot Depth (Max.) | 0.025in |
| Slot Width (Min.) | 0.016in |
| Slot Width (Max.) | 0.023in |
| Head Side Height (Min.) | 0.038in |
| Head Side Height (Max.) | 0.043in |
| Brand | VARIED |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.096in |
| Head Diameter (Min.) | 0.083in |
| Head Height (Max.) | 0.055in |
| Head Height (Min.) | 0.047in |
