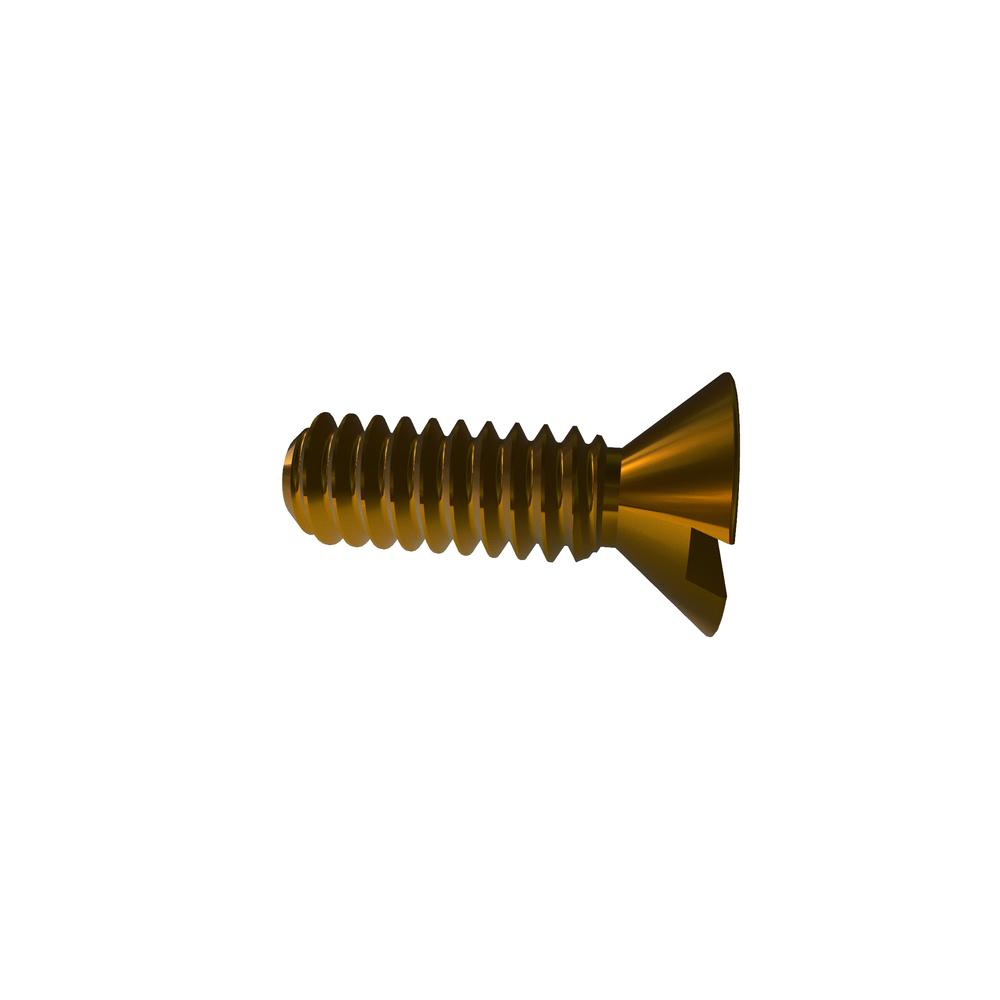

0-80 X 3/16 SLOT FLAT BRASS RoHS
0F18SFMBP
| Item Id | 0F18SFMBP |
| Description | 0-80 X 3/16 SLOT FLAT BRASS RoHS |
| Extended Description | 0-80 X 3/16 SLOT FLAT head Brass Plain |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 0.112in |
| Head Diameter (Min.) | 0.096in |
| Head Height | 0.035in |
| Head Type | Flat |
| Length | 0.18in |
| Material | Brass |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.060in |
| Slot Depth (Max.) | 0.015in |
| Slot Depth (Min.) | 0.010in |
| Slot Width (Max.) | 0.023in |
| Slot Width (Min.) | 0.016in |
| Thread Size | 0-80 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
