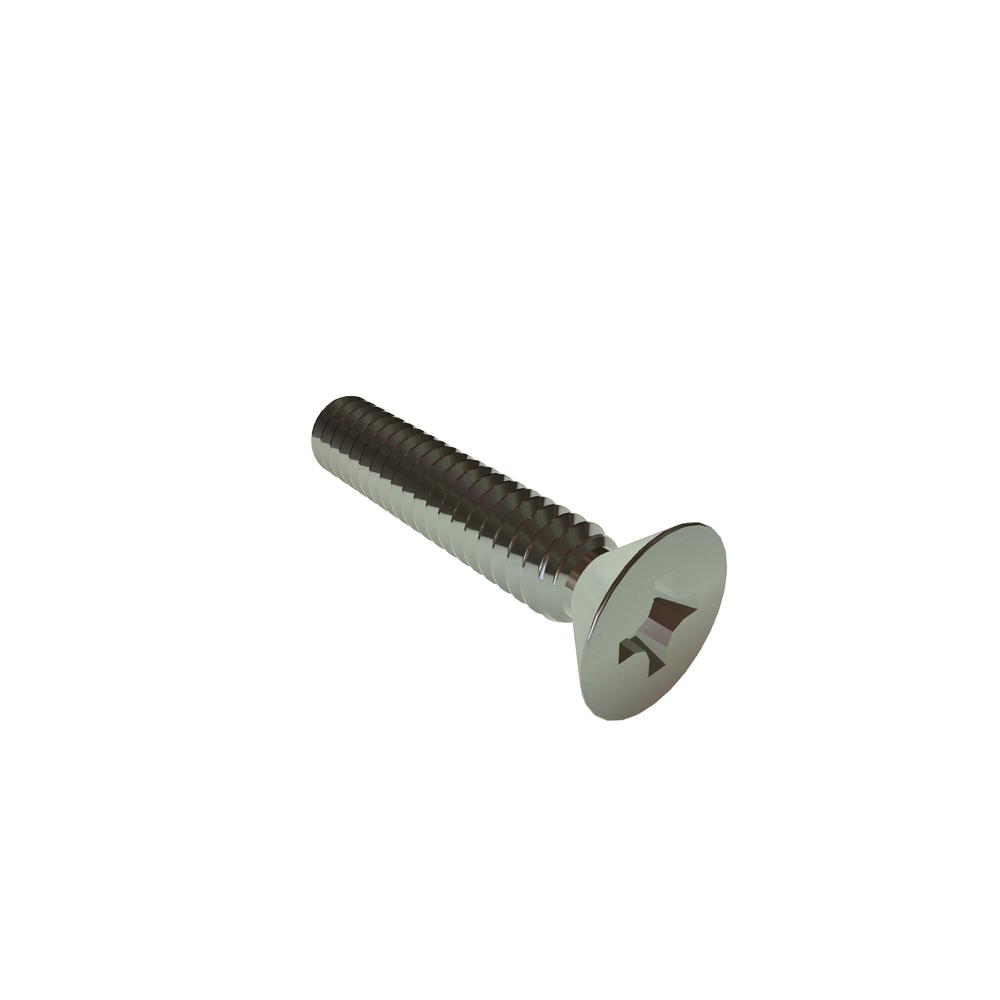

0-80 X 5/16 PHIL FLAT SST RoHS
0F31PFMS
| Item Id | 0F31PFMS |
| Description | 0-80 X 5/16 PHIL FLAT SST RoHS |
| Alternate Codes | MS51960-4 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91771A056 |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.112in |
| Head Diameter (Min.) | 0.096in |
| Head Height | 0.035in |
| Head Type | Flat |
| Length | 0.31in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.060in |
| Recess Depth (Max.) | 0.036in |
| Recess Depth (Min.) | 0.020in |
| Recess Diameter | 0.062in |
| RoHS | Compliant |
| Thread Size | 0-80 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
