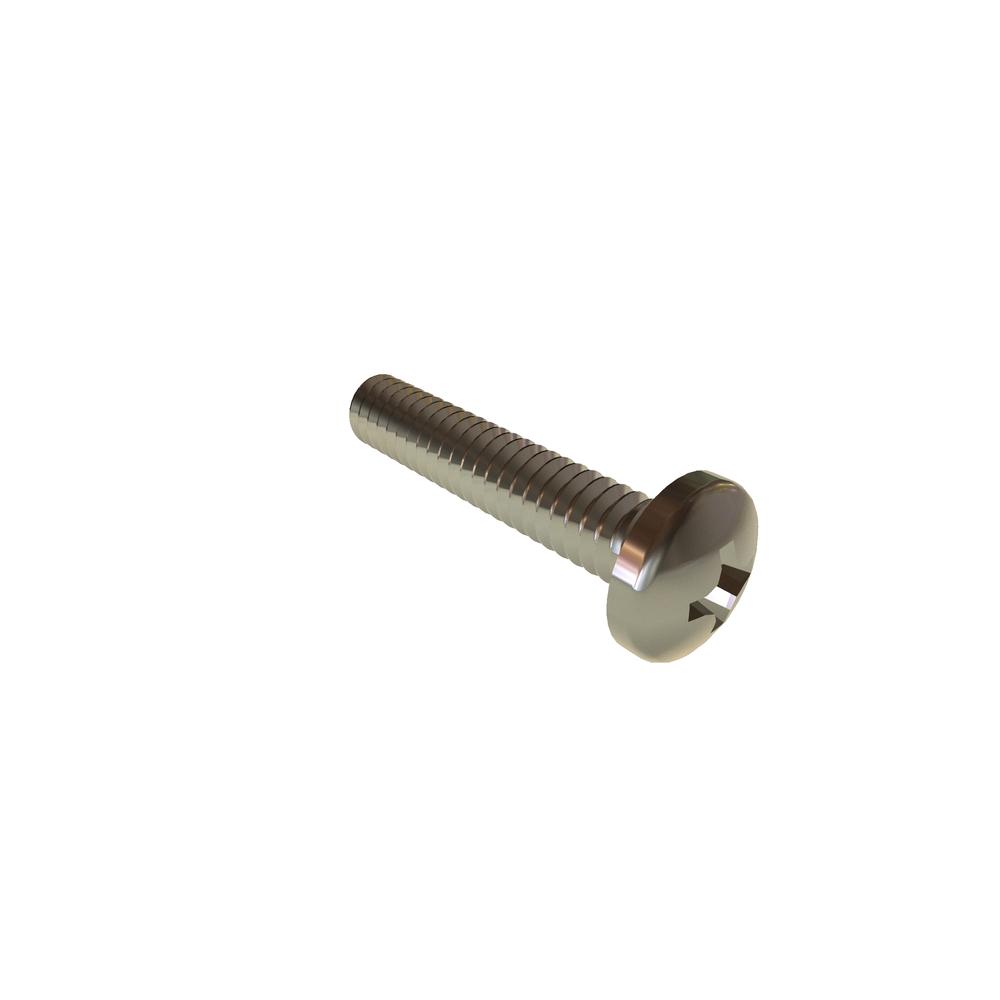

Image for reference purposes only. Actual product may vary.
0F31PPMS
0-80 X 5/16 PH PAN SST RoHS
Alternate Codes: 500599-00, MS51958-123
0-80 X 5/16 Phillips Pan Head Stainless Steel
Pricing per Unit
| 1-249 pcs | 250-499 pcs |
|---|---|
| $0.207 | $0.124 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 0.31in |
| Thread Size | 0-80 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.060in |
| Head Type | Pan |
| Recess Diameter | 0.060in |
| Head Radius (Min.) | 0.005in |
| Recess Depth (Min.) | 0.014in |
| Recess Depth (Max.) | 0.032in |
| Additional Industry Cross Reference | 91772A056 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.116in |
| Head Diameter (Min.) | 0.104in |
| Head Height (Max.) | 0.044in |
| Head Height (Min.) | 0.036in |
