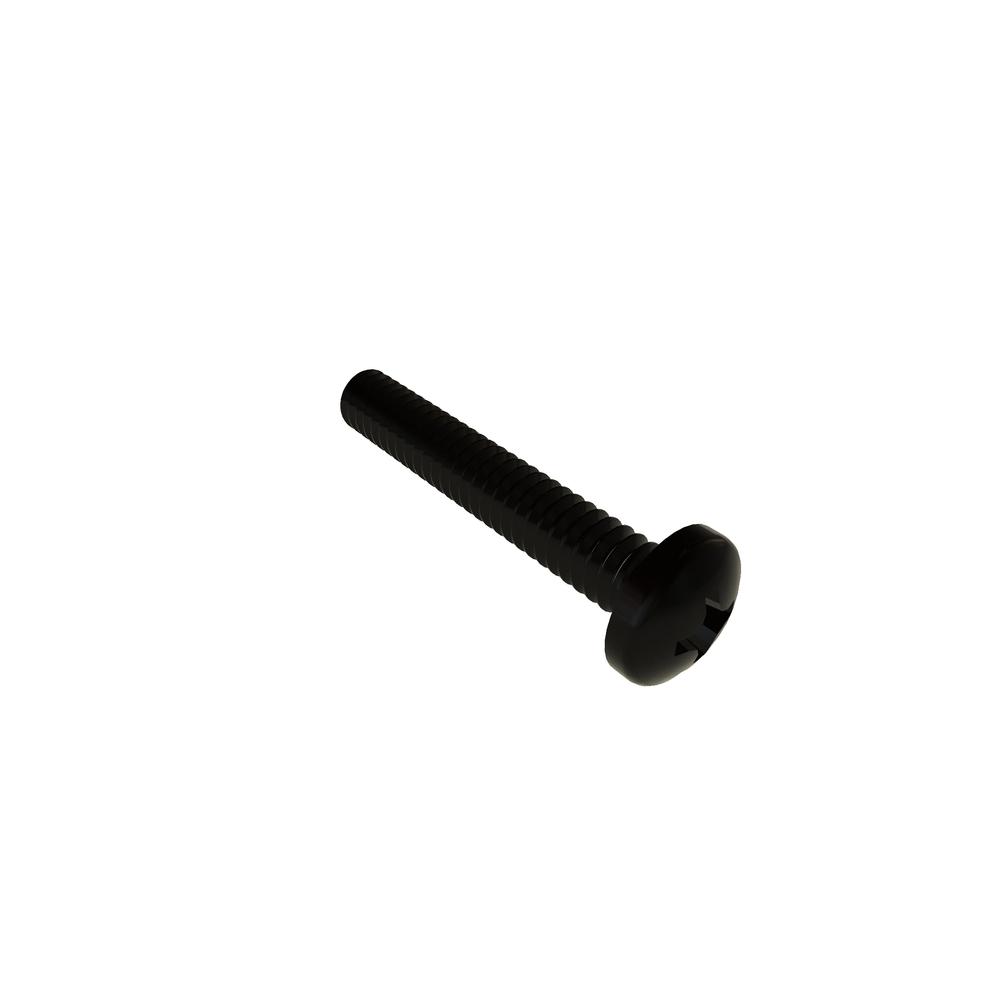

0-80 X 3/8 PHIL PAN SST BLK OX RoHS
0F37PPMSB
| Item Id | 0F37PPMSB |
| Description | 0-80 X 3/8 PHIL PAN SST BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 0.116in |
| Head Diameter (Min.) | 0.104in |
| Head Height (Max.) | 0.044in |
| Head Height (Min.) | 0.036in |
| Head Radius (Min.) | 0.005in |
| Head Type | Pan |
| Length | 0.37in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.060in |
| Recess Depth (Max.) | 0.032in |
| Recess Depth (Min.) | 0.014in |
| Recess Diameter | 0.060in |
| RoHS | Compliant |
| Thread Size | 0-80 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
