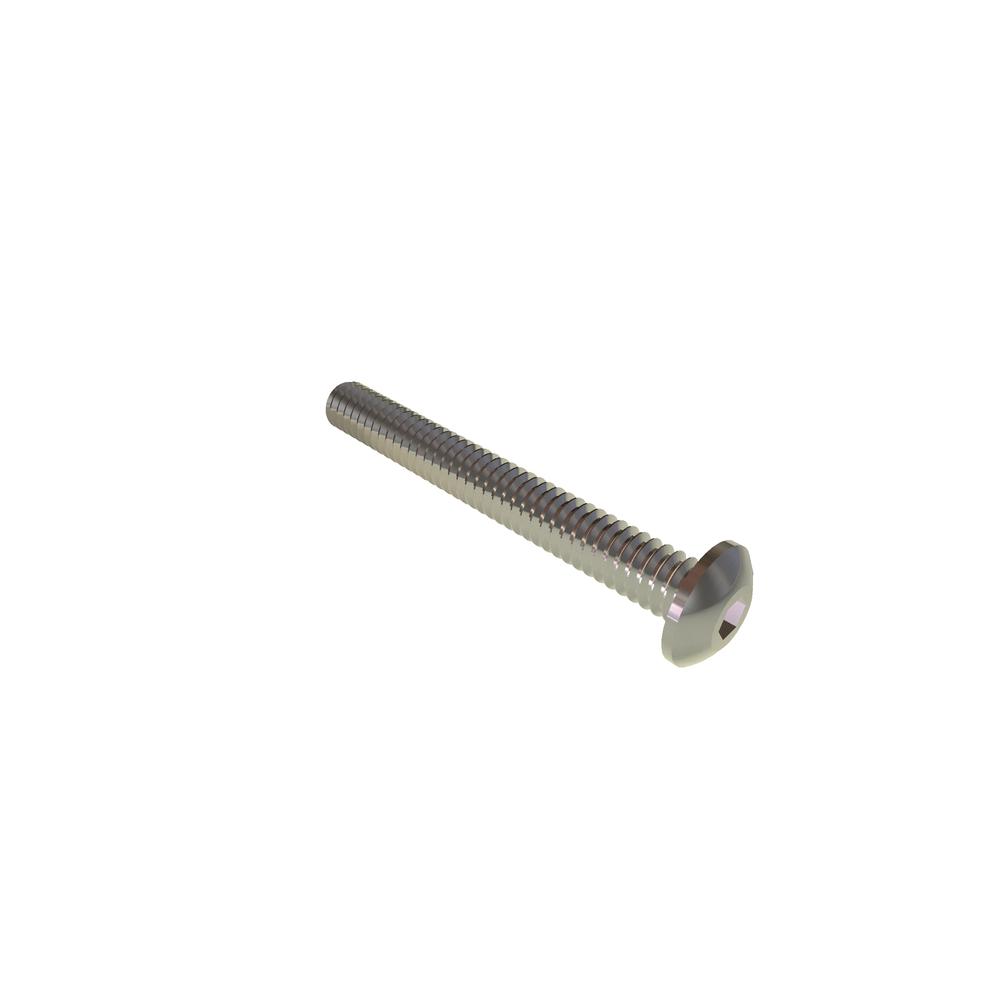

0F50BHCS
0-80 X 1/2 BUT SOC SST RoHS
Alternate Codes: 780-00276
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.856 | $0.471 | $0.392 | $0.336 | $0.277 | Larger Quantities |
In Stock
| Thread Size | 0-80 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.06in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.070in |
| Fillet Transition Diameter (Max.) | 0.080in |
| Head Side Height (Ref.) | 0.010in |
| Key Engagement | 0.020in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92949A313 |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.114in |
| Head Diameter (Min.) | 0.104in |
| Head Height (Max.) | 0.032in |
| Head Height (Min.) | 0.026in |
| Hex Socket Size | 0.035in |
