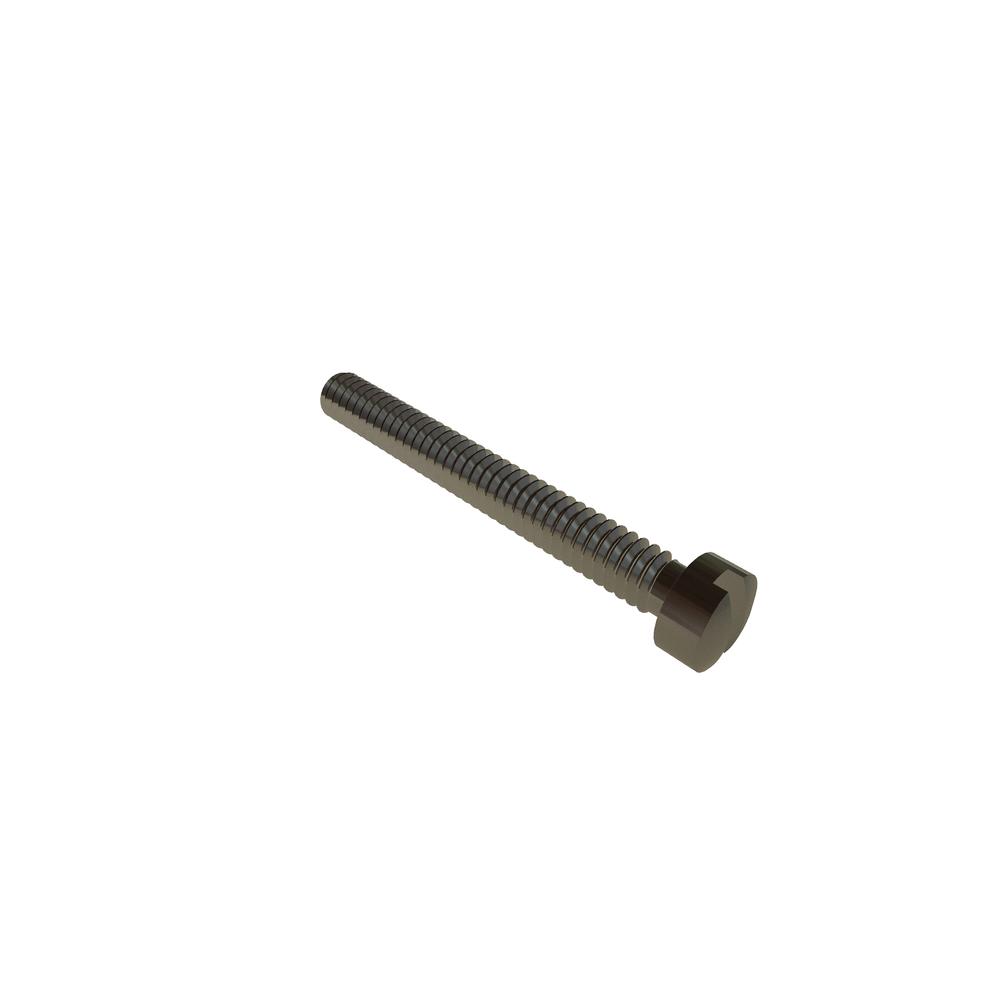

0-80 X 1/2 SLOT FILLISTER BRASS SLVR PLT
0F50SFIBS
| Item Id | 0F50SFIBS |
| Description | 0-80 X 1/2 SLOT FILLISTER BRASS SLVR PLT |
| Alternate Codes | 12944 |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Silver Plated |
| Head Diameter (Max.) | 0.096in |
| Head Diameter (Min.) | 0.083in |
| Head Height (Max.) | 0.055in |
| Head Height (Min.) | 0.047in |
| Head Side Height (Max.) | 0.043in |
| Head Side Height (Min.) | 0.038in |
| Head Type | Fillister |
| Length | 0.50in |
| Material | Brass |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.060in |
| Slot Depth (Max.) | 0.025in |
| Slot Depth (Min.) | 0.015in |
| Slot Width (Max.) | 0.023in |
| Slot Width (Min.) | 0.016in |
| Thread Size | 0-80 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
