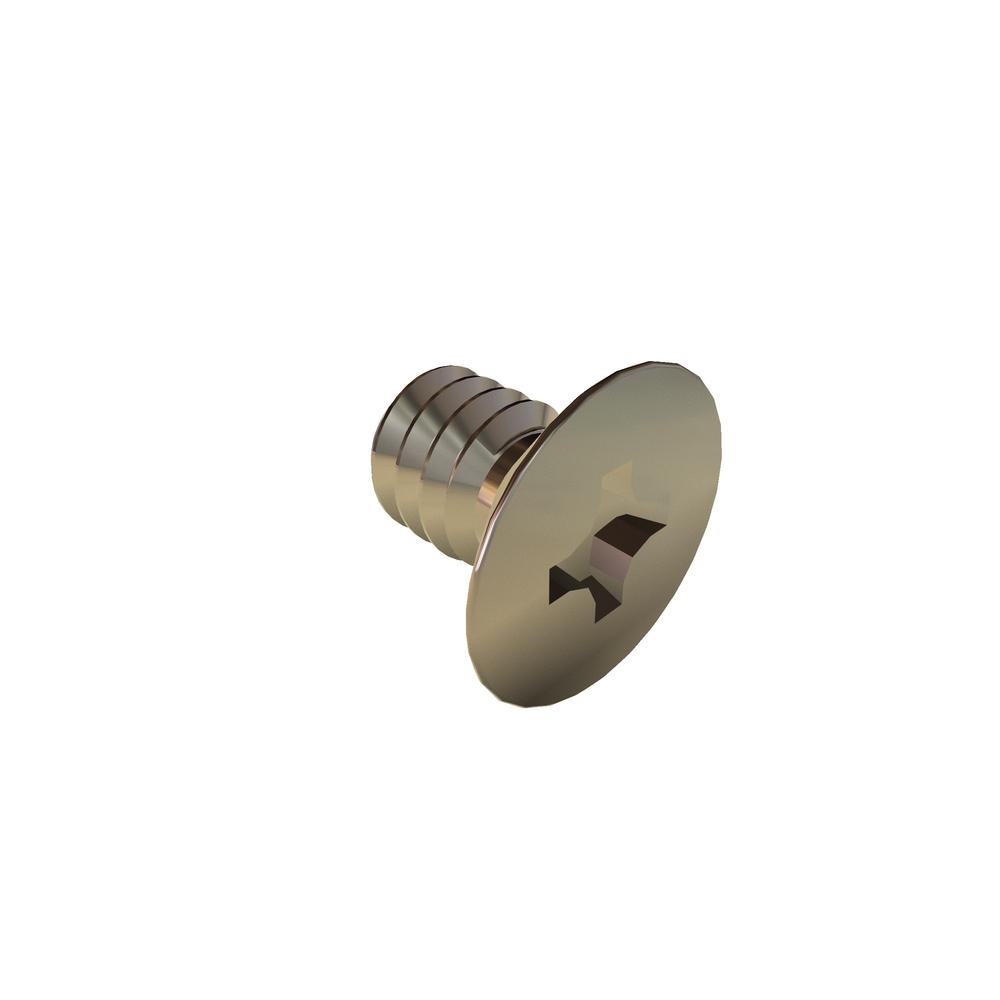

0-80 X 3/32 PHIL FLAT 100 DEG SST RoHS
0F9PFHS
| Item Id | 0F9PFHS |
| Description | 0-80 X 3/32 PHIL FLAT 100 DEG SST RoHS |
| Alternate Codes | 1600103-003, MS24693C217, MS24693C217 MILSPEC |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.112in |
| Head Diameter (Min.) | 0.095in |
| Head Height | 0.026in |
| Length | 0.09in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Thread Size | 0.060in |
| Recess Depth (Max.) | 0.028in |
| Recess Depth (Min.) | 0.012in |
| Recess Diameter | 0.054in |
| RoHS | Compliant |
| Thread Size | 0-80 |
| Type | Flat Head 100 Degree |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
