0F9PFUS

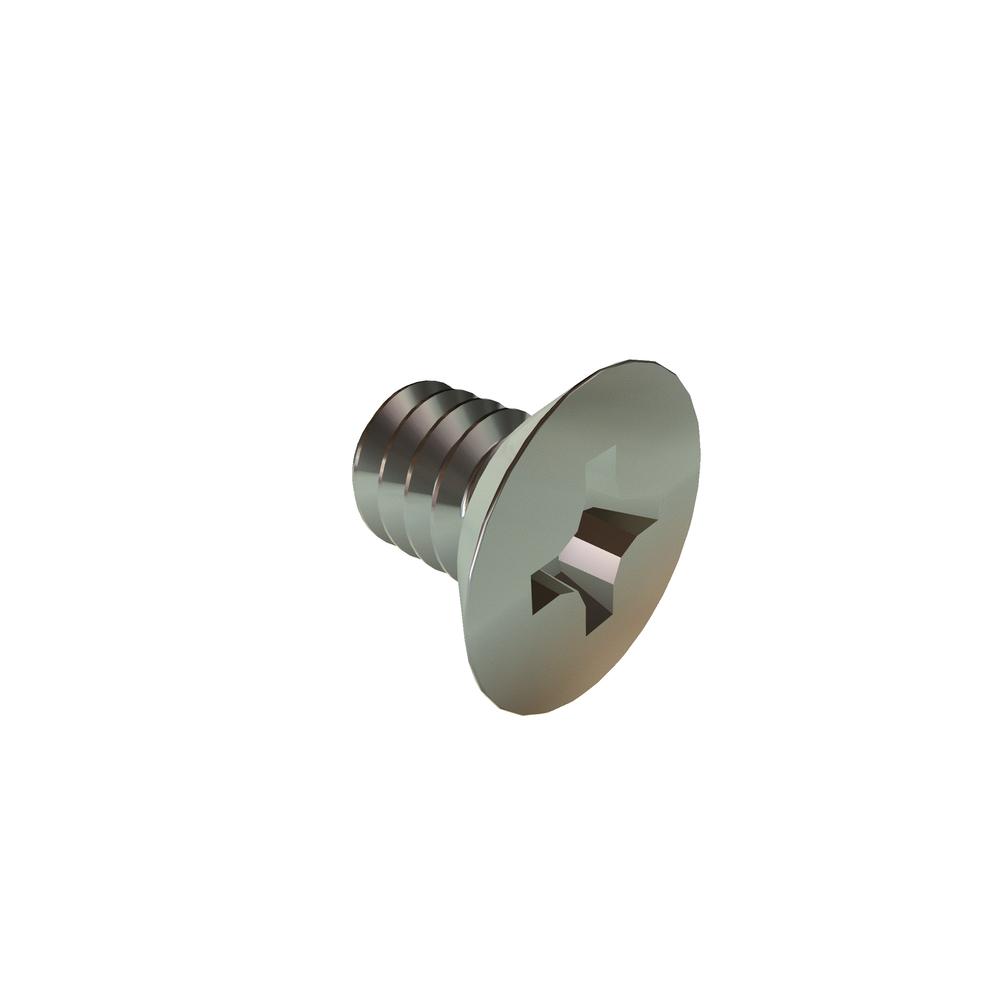

0-80 X 3/32 PHIL FLAT U/C SST RoHS
Alternate Codes: 91771A848
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.484 | $0.254 | $0.201 | $0.186 | $0.156 | Larger Quantities |
In Stock
| Thread Size | 0-80 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.060in |
| Head Type | Flat Undercut |
| Drive Type | Phillips |
| Recess Diameter | 0.062in |
| Recess Depth (Min.) | 0.020in |
| Recess Depth (Max.) | 0.036in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91771A848 |
| Length | 0.09in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.112in |
| Head Diameter (Min.) | 0.096in |
| Head Height (Max.) | 0.025in |
| Head Height (Min.) | 0.018in |
