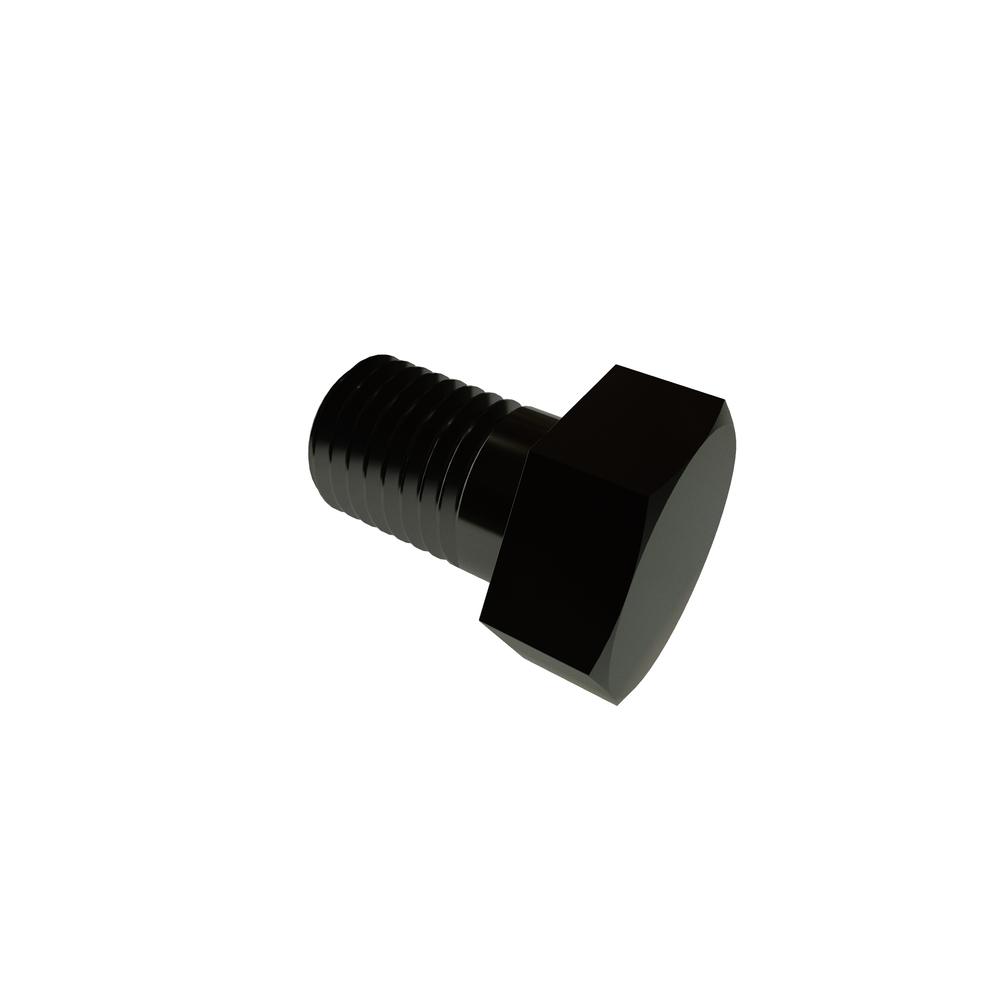

Image for reference purposes only. Actual product may vary.
100C150HHD5R
1-8 X 1 1/2 HX HD GR 5 ZN RoHS
Alternate Codes: N/A
1-8 X 1 1/2 Hex Head Grade 5 Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Meets (Standard) | ASME B18.2.1 |
| Length | 1.50in |
| Thread Size | 1-8 |
| Head Height (Min.) | 0.591in |
| Body Diameter (Max.) | 1.022in |
| Head Height (Max.) | 0.700in |
| Additional Industry Cross Reference | 92865A908 |
| Body Diameter (Min.) | 0.976in |
| Nominal Thread Size | 1.000in |
| Width Across Flat (Min.) | 1.450in |
| Material | Steel |
| Width Across Flat (Max.) | 1.500in |
| RoHS | Compliant |
| Finish | Zinc Clear |
| Grade | 5 |
| Brand | VARIED |
| Units | Inch |
