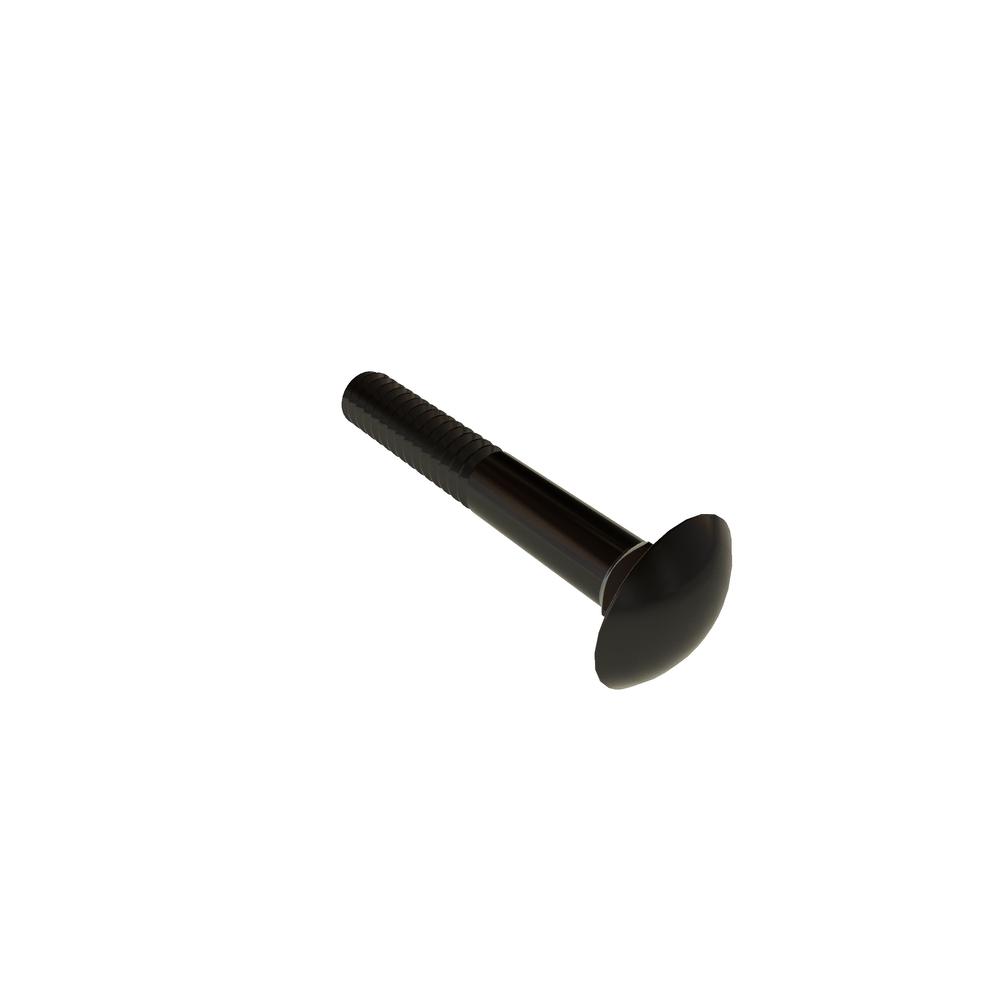

10C125CARZB
10-24 X 1 1/4 CARRIAGE BOLT STL BLK RoHS
Alternate Codes: 231-0011-07
10-24 X 1 1/4 CARRIAGE BOLT Steel Black oxide RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.356 | $0.187 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-24 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.190in |
| Body Diameter (Min.) | 0.159in |
| Grade | Other |
| Corner radius | 0.031in |
| Square Depth (Min.) | 0.094in |
| Square Depth (Max.) | 0.125in |
| Square Width (Min.) | 0.185in |
| Square Width (Max.) | 0.199in |
| Fillet Radius | 0.031in |
| Brand | VARIED |
| Type | Carriage Bolt |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.199in |
| Head Diameter (Max.) | 0.469in |
| Head Diameter (Min.) | 0.436in |
| Head Height (Max.) | 0.114in |
| Head Height (Min.) | 0.094in |
| Thread Length | 0.630in |
| Total Length | 1.25in |
