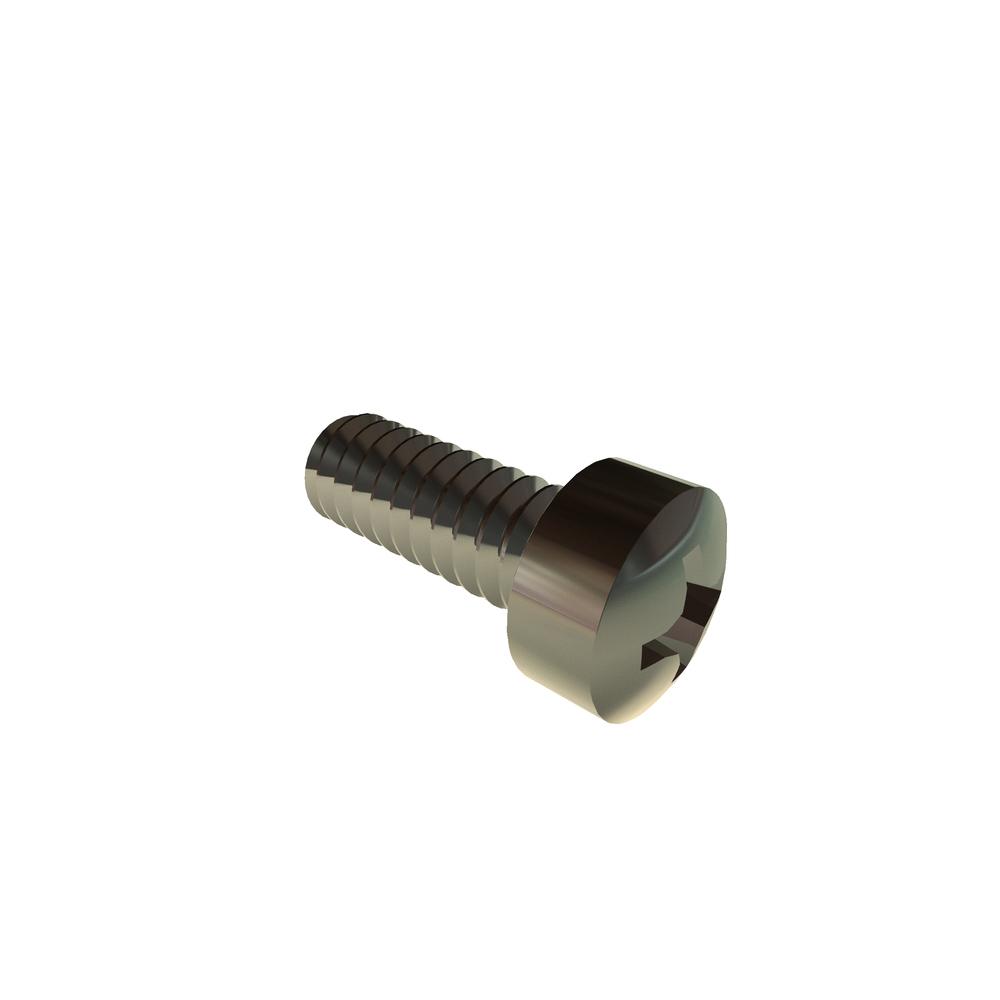

10C50PFIS
10-24 X 1/2 PHIL FILL SST RoHS
Alternate Codes: 91737A152
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.409 | $0.215 | $0.170 | $0.157 | $0.132 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-24 |
| Thread Size | 24-Oct |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.190in |
| Head Type | Fillister |
| Drive Type | Phillips |
| Drive Size | #2 |
| Recess Diameter | 0.192in |
| Recess Depth (Min.) | 0.089in |
| Recess Depth (Max.) | 0.113in |
| Head Side Height (Min.) | 0.118in |
| Head Side Height (Max.) | 0.130in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91737A152 |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.313in |
| Head Diameter (Min.) | 0.292in |
| Head Height (Max.) | 0.180in |
| Head Height (Min.) | 0.156in |
