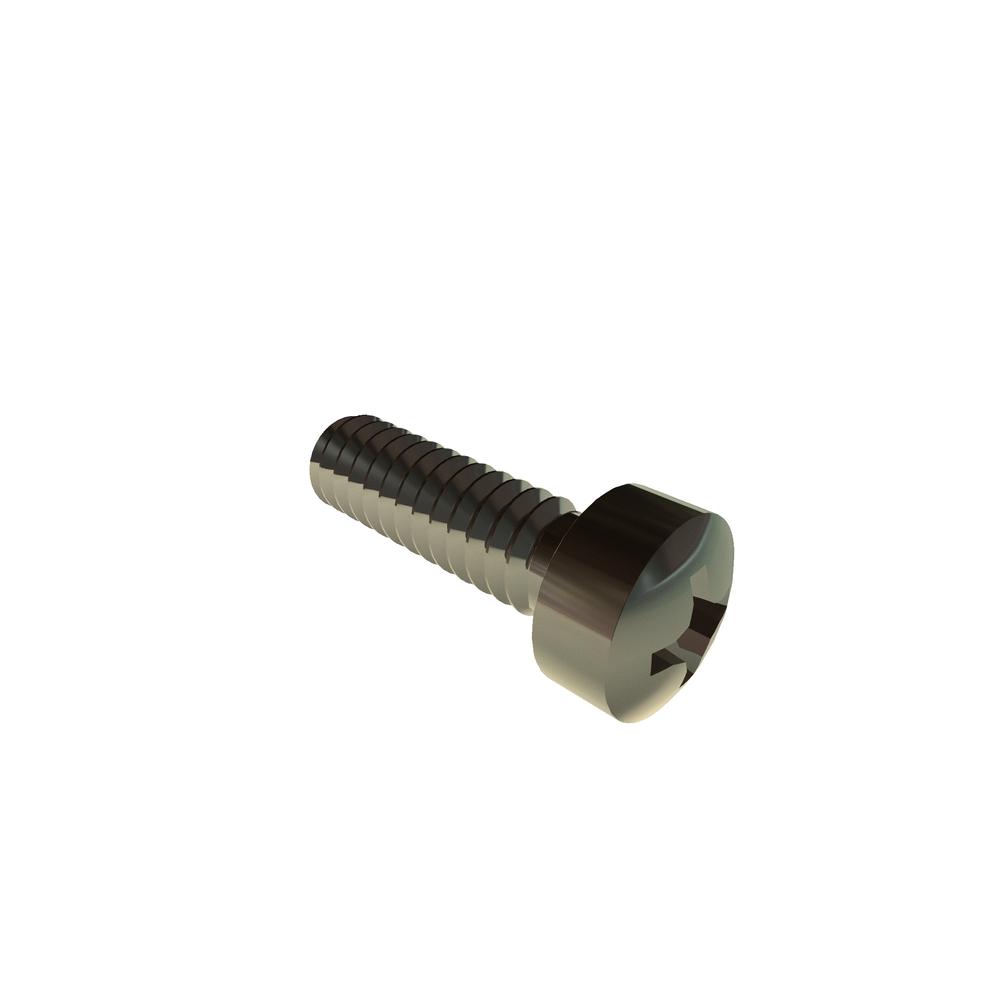

Image for reference purposes only. Actual product may vary.
10C62PFIS
10-24 X 5/8 PHIL FILL SST RoHS
Alternate Codes: N/A
10-24 X 5/8 Phillips Fillister Head Stainless Steel RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 0.62in |
| Thread Size | 10-24 |
| Finish | Plain |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.190in |
| Head Type | Fillister |
| Drive Size | #2 |
| Recess Diameter | 0.192in |
| Recess Depth (Min.) | 0.089in |
| Recess Depth (Max.) | 0.113in |
| Head Side Height (Min.) | 0.118in |
| Head Side Height (Max.) | 0.130in |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.313in |
| Head Diameter (Min.) | 0.292in |
| Head Height (Max.) | 0.180in |
| Head Height (Min.) | 0.156in |
