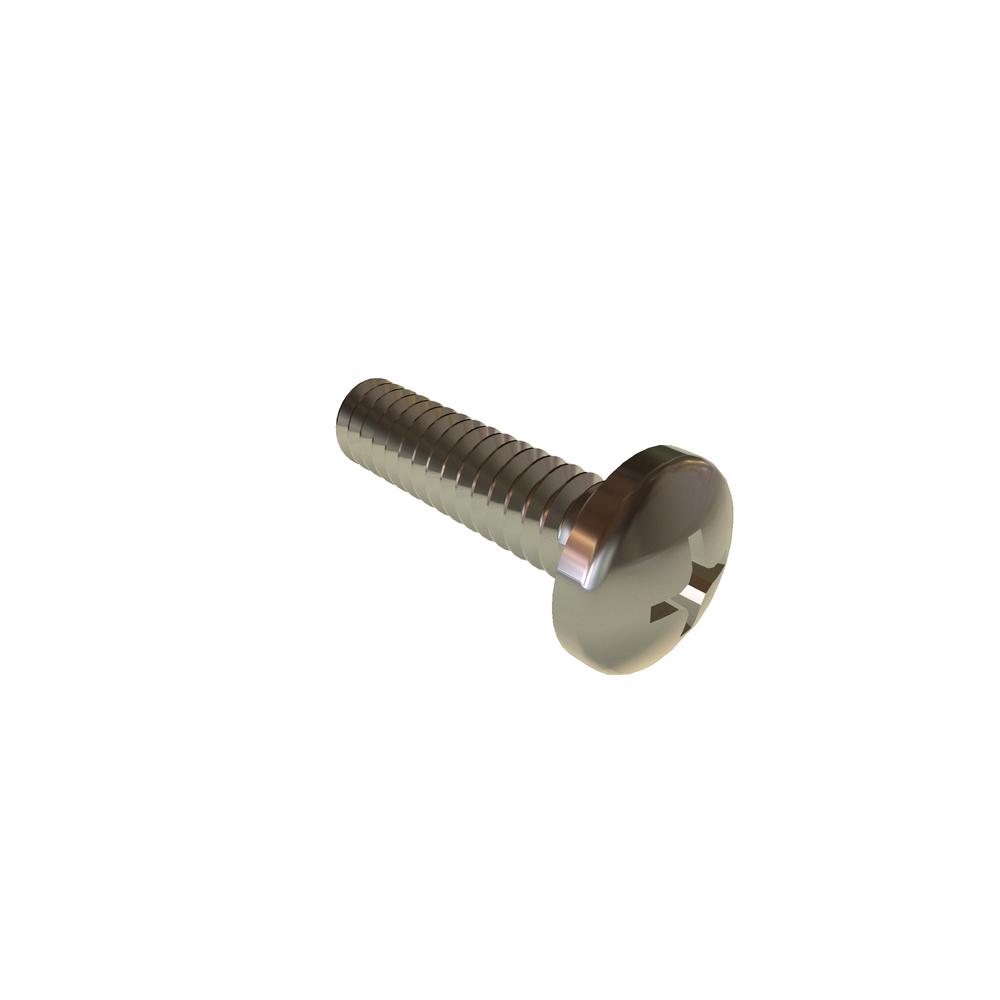

10C75PPMS
10-24 X 3/4 PH PAN SST RoHS
Alternate Codes: 2510405, MS51957-65, MS51957-65 COMMERCIAL EQUIV
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.343 | $0.181 | $0.143 | $0.132 | $0.111 | Larger Quantities |
In Stock
| Thread Size | 10-24 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Recess Depth (Min.) | 0.089in |
| Recess Depth (Max.) | 0.113in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A245 |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
