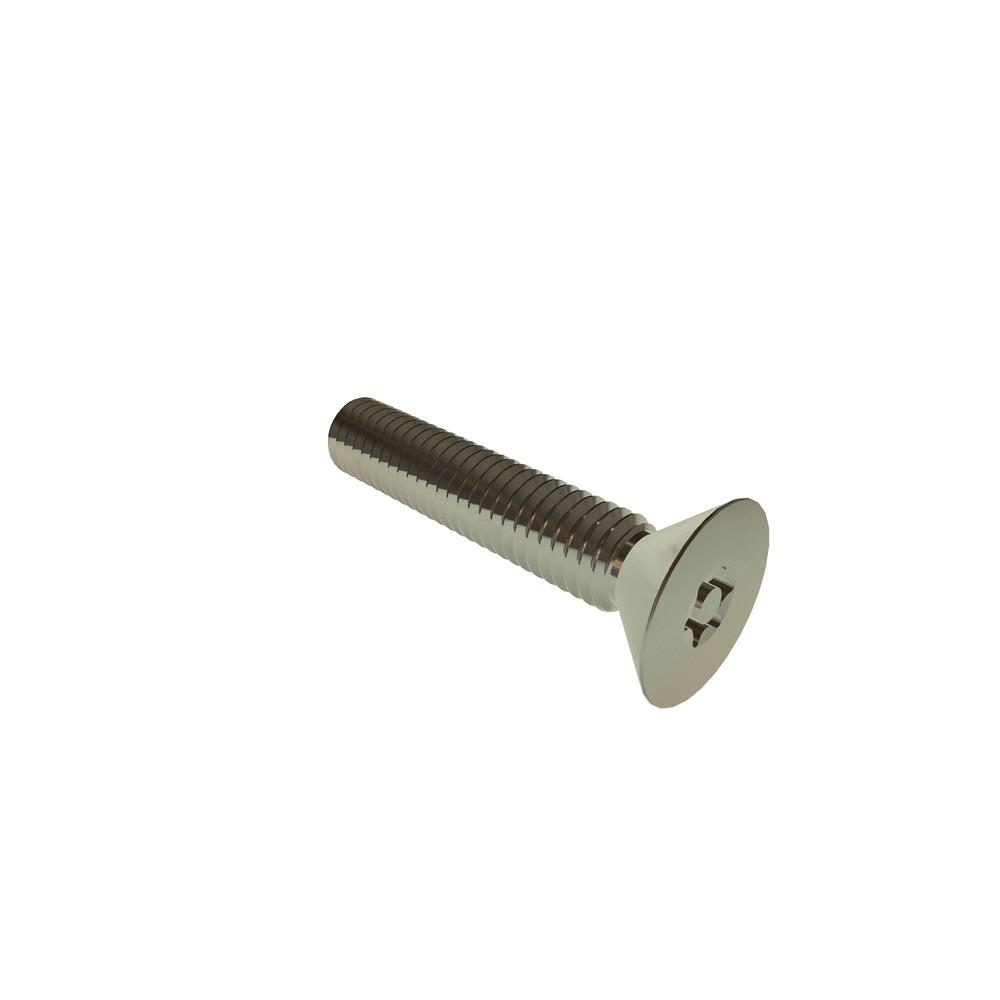

10F100FHXS/T
10-32 X 1 FLAT TORX T-R SST RoHS
Alternate Codes: 91870A833
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 10-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Flat |
| Drive Type | Torx |
| Drive Size | T20 |
| Recess Diameter | 0.155in |
| Recess Depth (Min.) | 0.050in |
| Recess Depth (Max.) | 0.065in |
| Pin Diameter | 0.068in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91870A833 |
| Length | 1.00in |
| RoHS | Compliant |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
| Head Height (Max.) | 0.116in |
