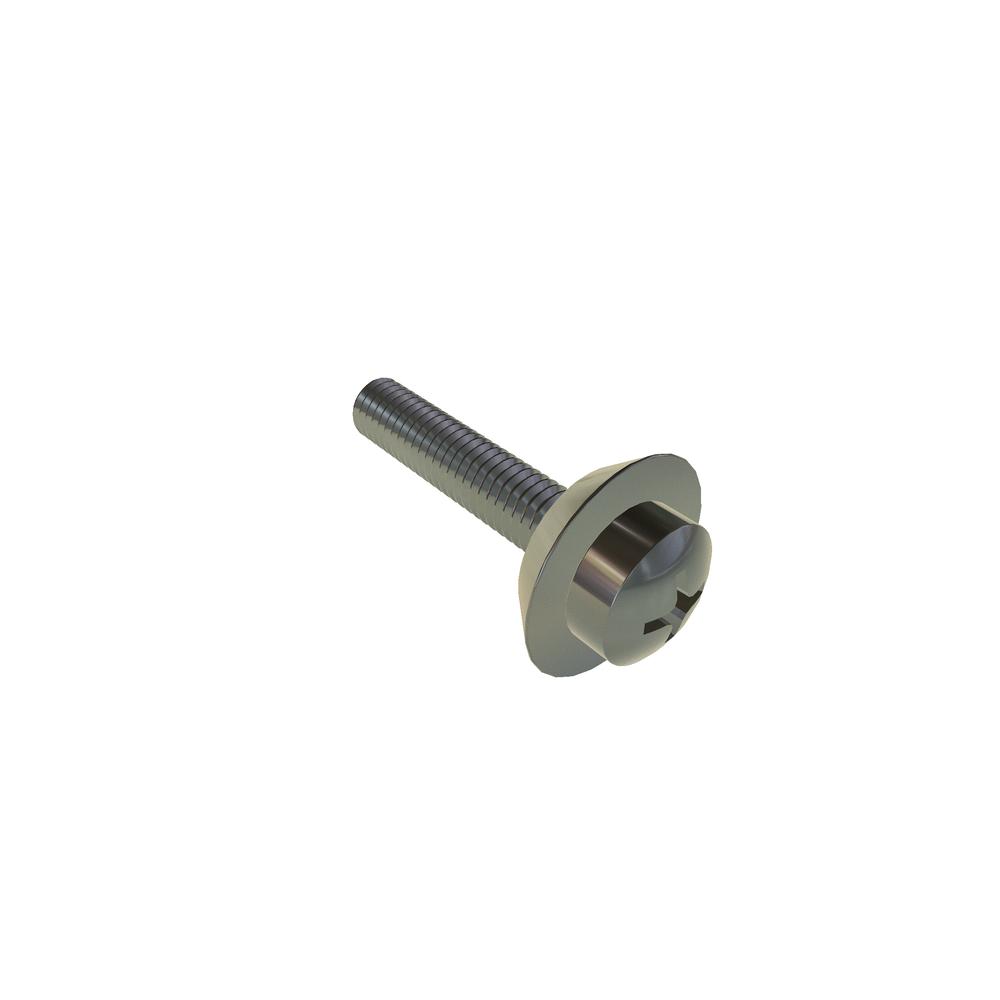

10F100PCWZN
10-32 X 1 PHIL CUP WASH STL NI
Alternate Codes: 20-09-002, 887-0129-00
Pricing per Unit
| 1-99 pcs |
|---|
| $0.426 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Nickel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Cup Washer |
| Drive Type | Phillips |
| Recess Diameter | 0.202in |
| Head Height | 0.176in |
| Recess Depth (Min.) | 0.102in |
| Recess Depth (Max.) | 0.126in |
| Head Side Height | 0.116in |
| Brand | VARIED |
| Length | 1.00in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
| Crown Height | 0.060in |
| Washer Inner Diameter | 0.235in |
| Washer Outer Diameter | 0.594in |
| Washer Height | 0.122in |
