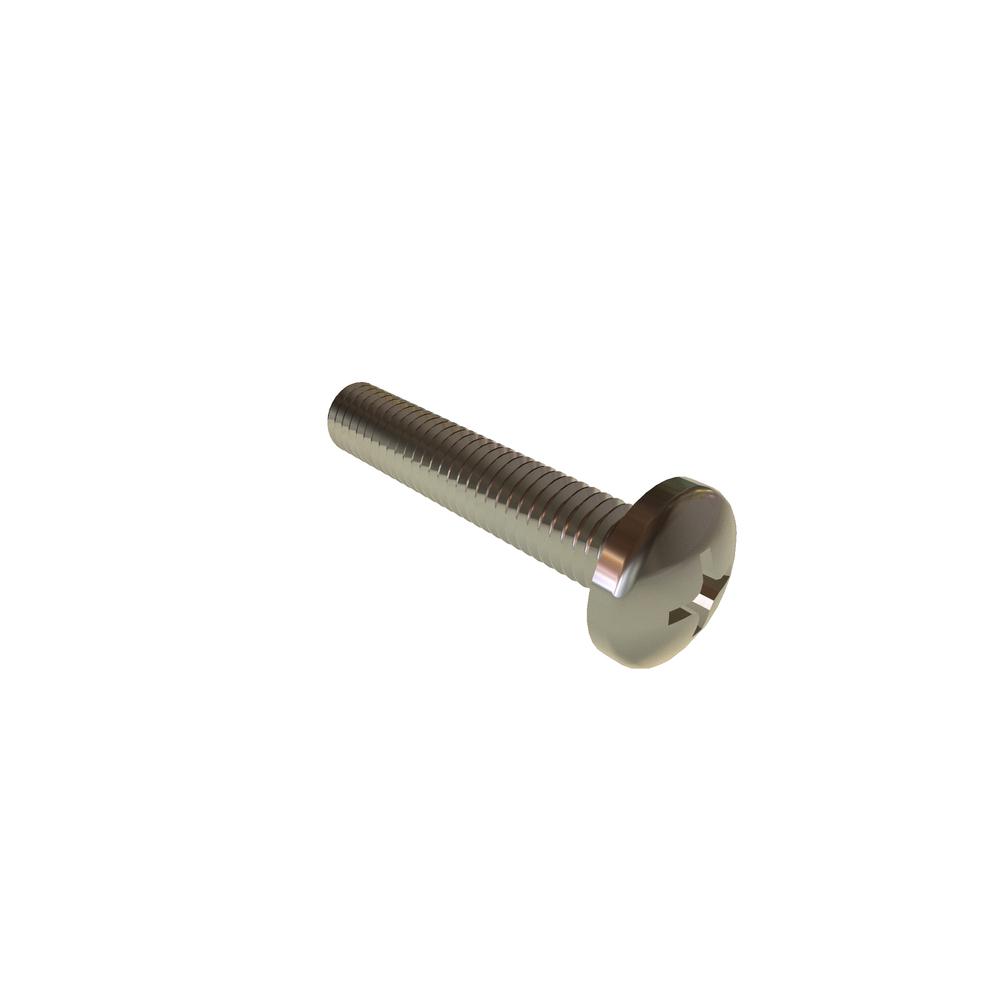

10-32 X 1 PH PAN SST RoHS
10F100PPMS
| Item Id | 10F100PPMS |
| Description | 10-32 X 1 PHIL PAN SST RoHS |
| Alternate Codes | 005328, 100-03-143, 12-222060-20, 477-0062, 477-0065, 900050, MS51958-67, P0497 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91772A833 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
| Head Radius (Min.) | 0.020in |
| Head Type | Pan |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| Recess Depth (Max.) | 0.113in |
| Recess Depth (Min.) | 0.089in |
| Recess Diameter | 0.192in |
| RoHS | Compliant |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
