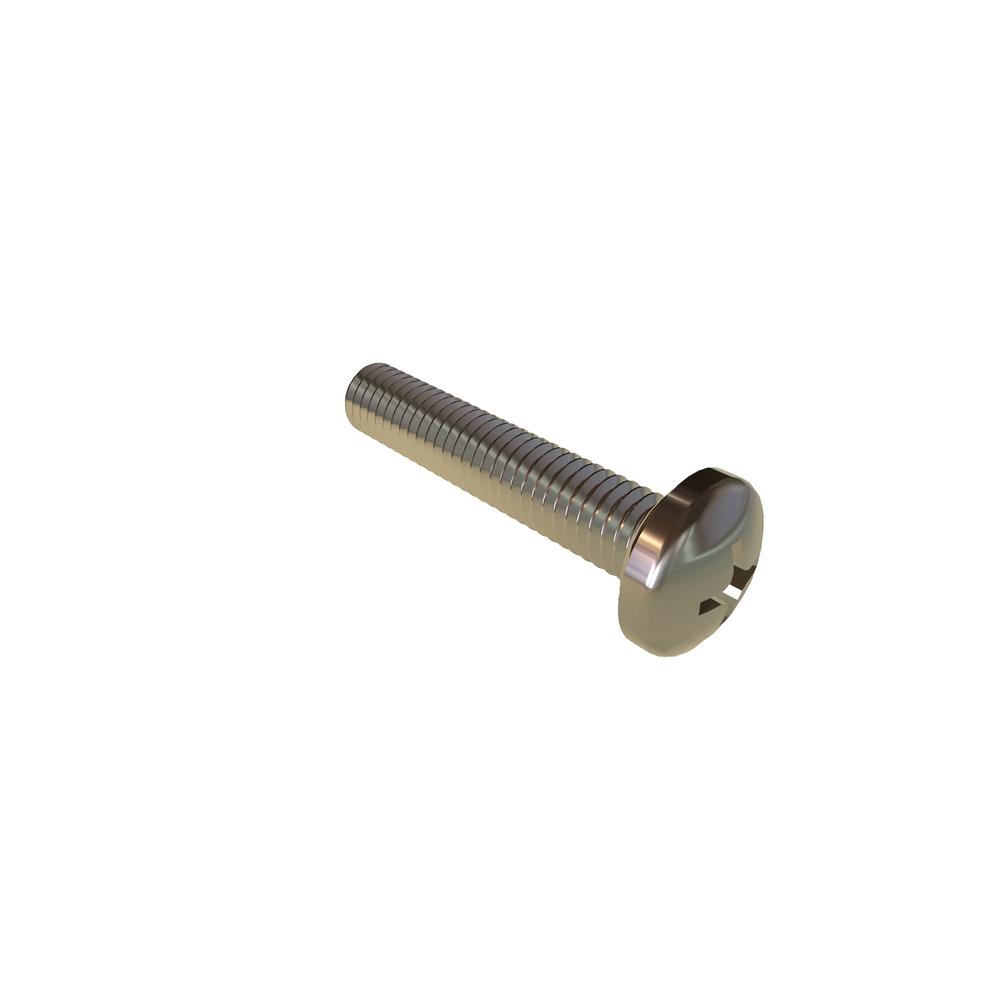

Image for reference purposes only. Actual product may vary.
10F100PPMS/SEEL
10-32 X 1 PH PAN SEELSKREW SST RoHS
Alternate Codes: MS3212-46
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|---|
| $1.456 | $1.120 | $0.910 | $0.809 | $0.728 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.190in |
| Thread Size | 10-32 |
| Finish | Plain |
| Recess Depth (Max.) | 0.113in |
| Recess Depth (Min.) | 0.089in |
| Recess Diameter | 0.192in |
| O-Ring Thickness | 0.054in |
| O-Ring Diameter | 0.298in |
| Brand | APM HEXSEAL |
| Drive Type | Phillips |
| Head Type | Pan |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Drive Size | 2 |
| Head Radius (Min.) | 0.020in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
