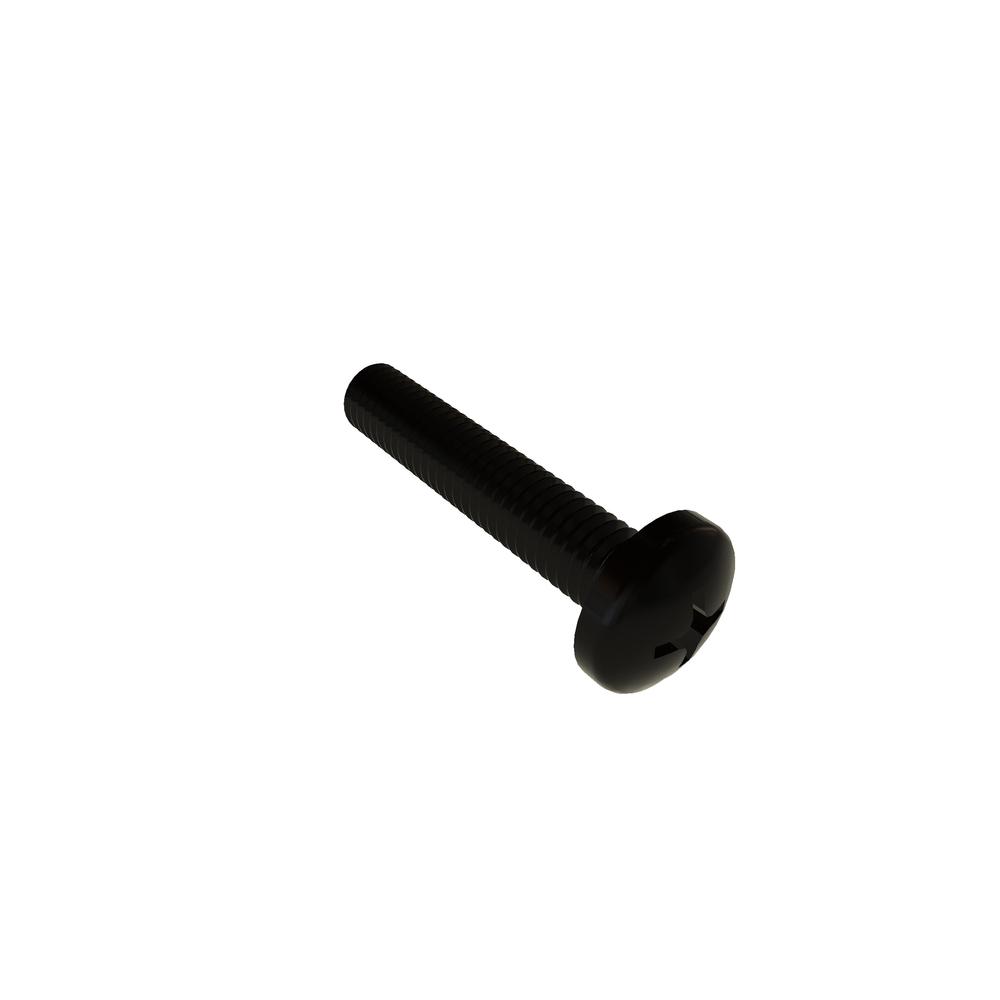

Image for reference purposes only. Actual product may vary.
10F100PPMZB
10-32 X 1 PH PAN STL BLK RoHS
Alternate Codes: N/A
10-32 X 1 Phillips Pan Head Steel Black Oxide RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.220 | $0.116 | $0.091 | $0.085 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 1.00in |
| Thread Size | 10-32 |
| Finish | Black Oxide |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Size | 2 |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Recess Depth (Min.) | 0.089in |
| Recess Depth (Max.) | 0.113in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.133in |
| Head Height (Min.) | 0.122in |
