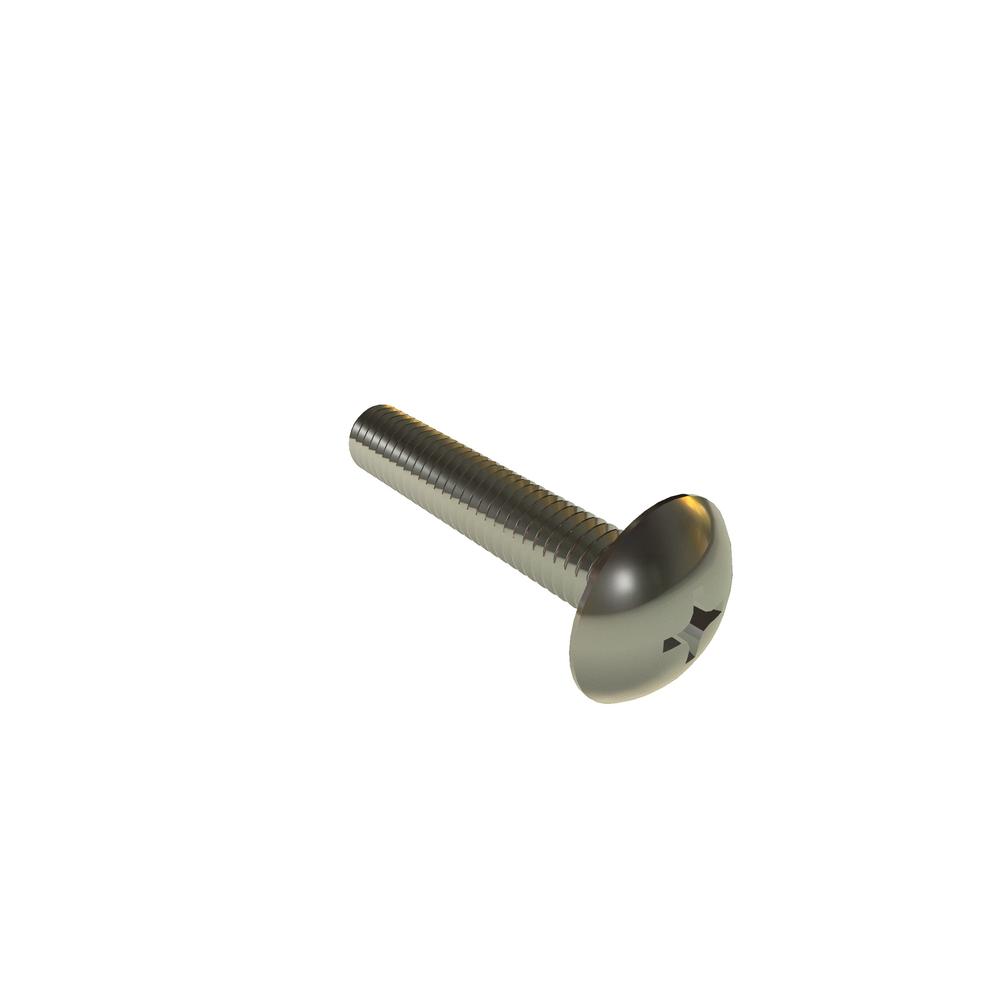

Image for reference purposes only. Actual product may vary.
10F100PTMS
10-32 X 1 PHIL TRUSS SST RoHS
Alternate Codes: 91770A833
10-32 X 1 Phillips TRUSS Head Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.230 | $0.121 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 1.00in |
| Thread Size | 10-32 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Truss |
| Drive Size | 2 |
| Recess Diameter | 0.181in |
| Head Radius (Min.) | 0.283in |
| Recess Depth (Min.) | 0.079in |
| Recess Depth (Max.) | 0.104in |
| Additional Industry Cross Reference | 91770A833 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.448in |
| Head Diameter (Min.) | 0.425in |
| Head Height (Max.) | 0.118in |
| Head Height (Min.) | 0.103in |
