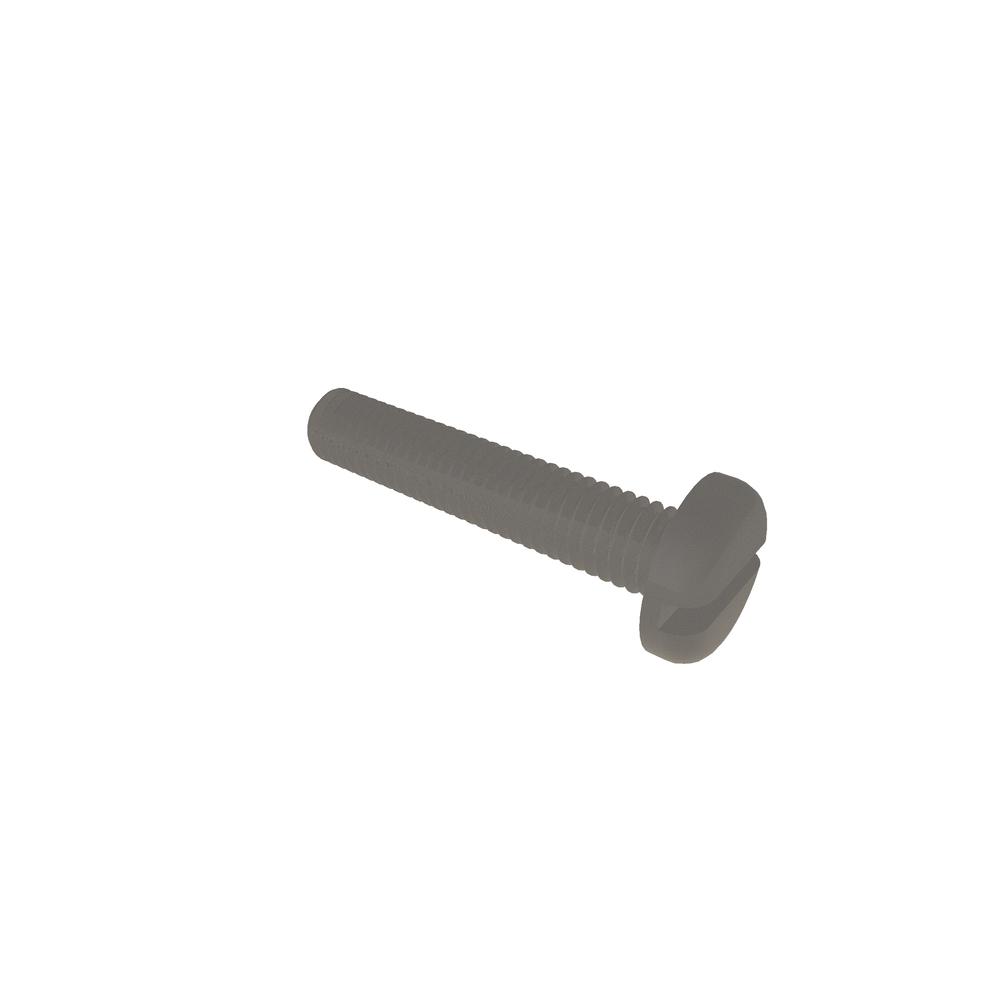

10-32 X 1 SLOT PAN HD NYL
10F100SPMN
| Item Id | 10F100SPMN |
| Description | 10-32 X 1 SLOT PAN HD NYL |
| Alternate Codes | 10-P10100-NO, 225-0062-25 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92942A755 |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 0.373in |
| Head Diameter (Min.) | 0.357in |
| Head Height (Max.) | 0.110in |
| Head Height (Min.) | 0.099in |
| Head Radius (Min.) | 0.061in |
| Head Type | Pan |
| Length | 1.00in |
| Material | Nylon |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| Slot Depth (Max.) | 0.068in |
| Slot Depth (Min.) | 0.053in |
| Slot Width (Max.) | 0.060in |
| Slot Width (Min.) | 0.050in |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
