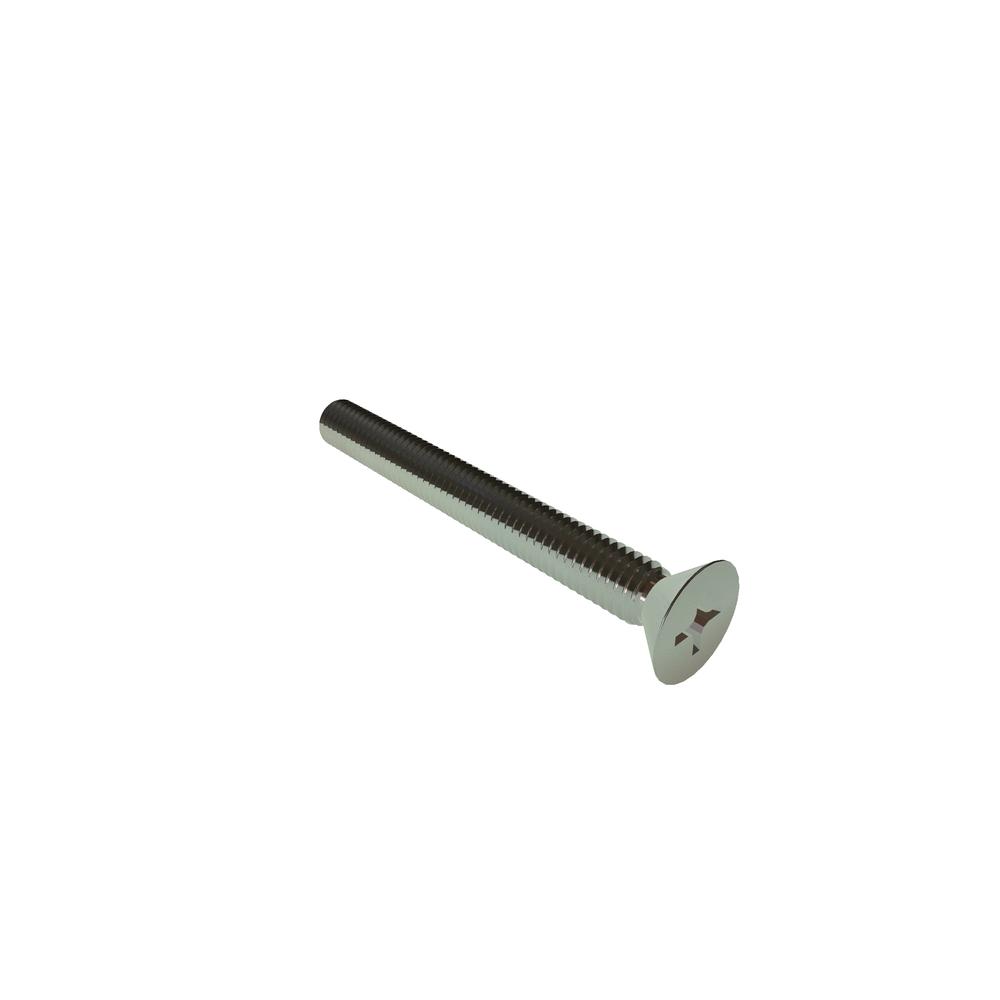

Image for reference purposes only. Actual product may vary.
10F175PFMS
10-32 X 1 3/4 PHIL FLAT SST RoHS
Alternate Codes: MS51960-72, X16-0815-028
10-32 X 1 3/4 Phillips FLAT Head Stainless Steel RoHS3
Pricing per Unit
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 10-32 |
| Length | 1.75in |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Finish | Plain |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Flat |
| Body Diameter (Min.) | 3.430in |
| Head Height | 0.116in |
| Recess Depth (Min.) | 0.102in |
| Recess Depth (Max.) | 0.125in |
| Additional Industry Cross Reference | 91771A837 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Body Diameter (Max.) | 4.000in |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
