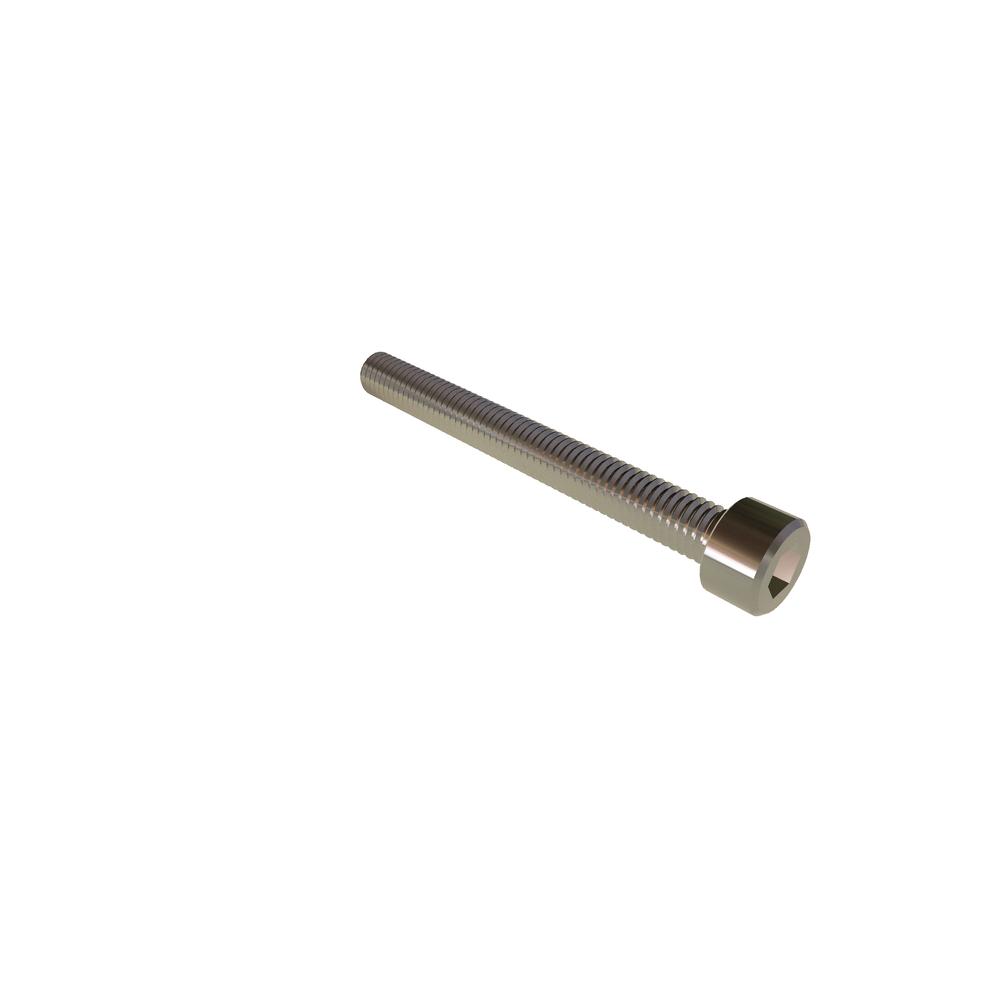

10F175SHCS
10-32 X 1 3/4 SOC CAP SST RoHS
Alternate Codes: 004556, 100-02-424, 2825-3235, 3690-01446, X16-0215-028
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $1.508 | $1.160 | $0.943 | $0.838 | $0.754 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Additional Industry Cross Reference | 92196A278 |
| Key Engagement (Min.) | 0.090in |
| Length | 1 3/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Body Diameter (Max.) | 0.190in |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.298in |
| Head Height (Max.) | 0.190in |
| Head Height (Min.) | 0.185in |
| Hex Socket Size | 0.156in |
