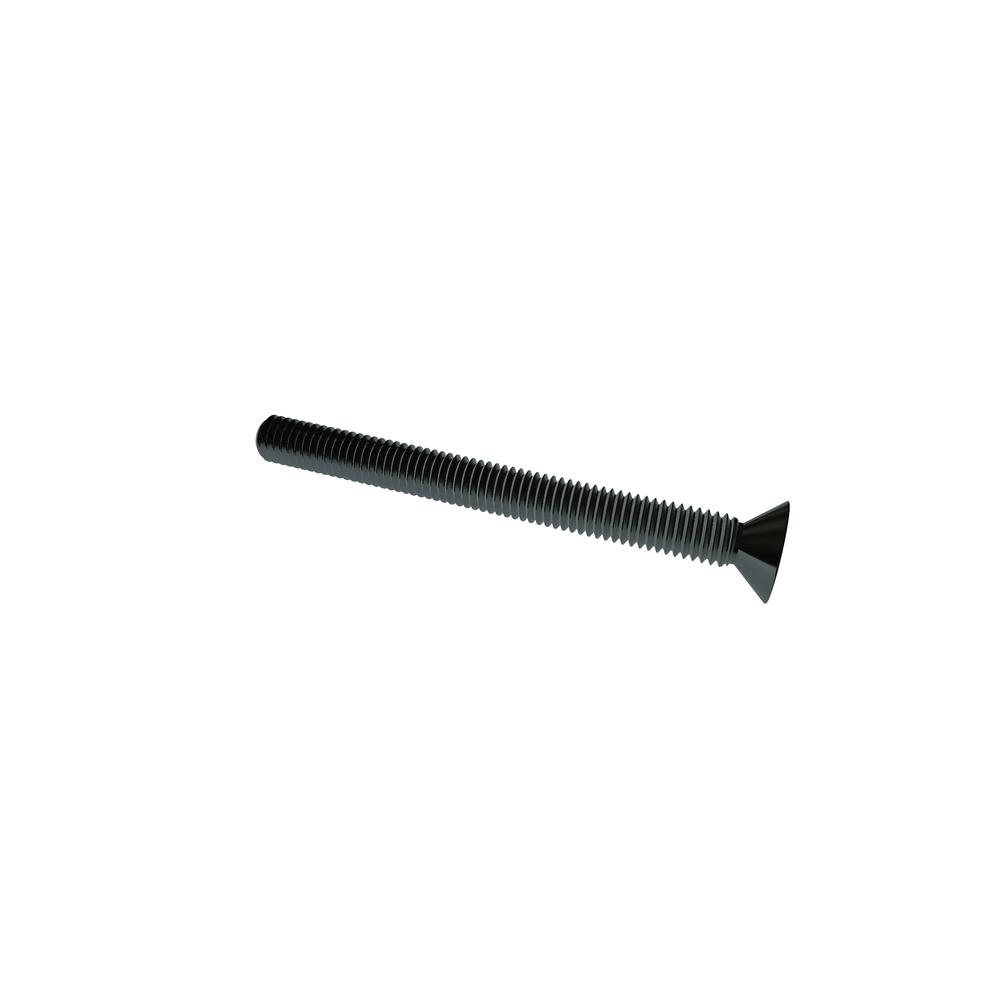

10F200PFMZR
10-32 X 2 PHIL FLAT STL ZN CR3
Alternate Codes: 90273A838
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.333 | $0.175 | $0.139 | $0.128 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.198in |
| Head Height | 0.116in |
| Recess Depth (Min.) | 0.102in |
| Recess Depth (Max.) | 0.125in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90273A838 |
| Length | 2.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.333in |
