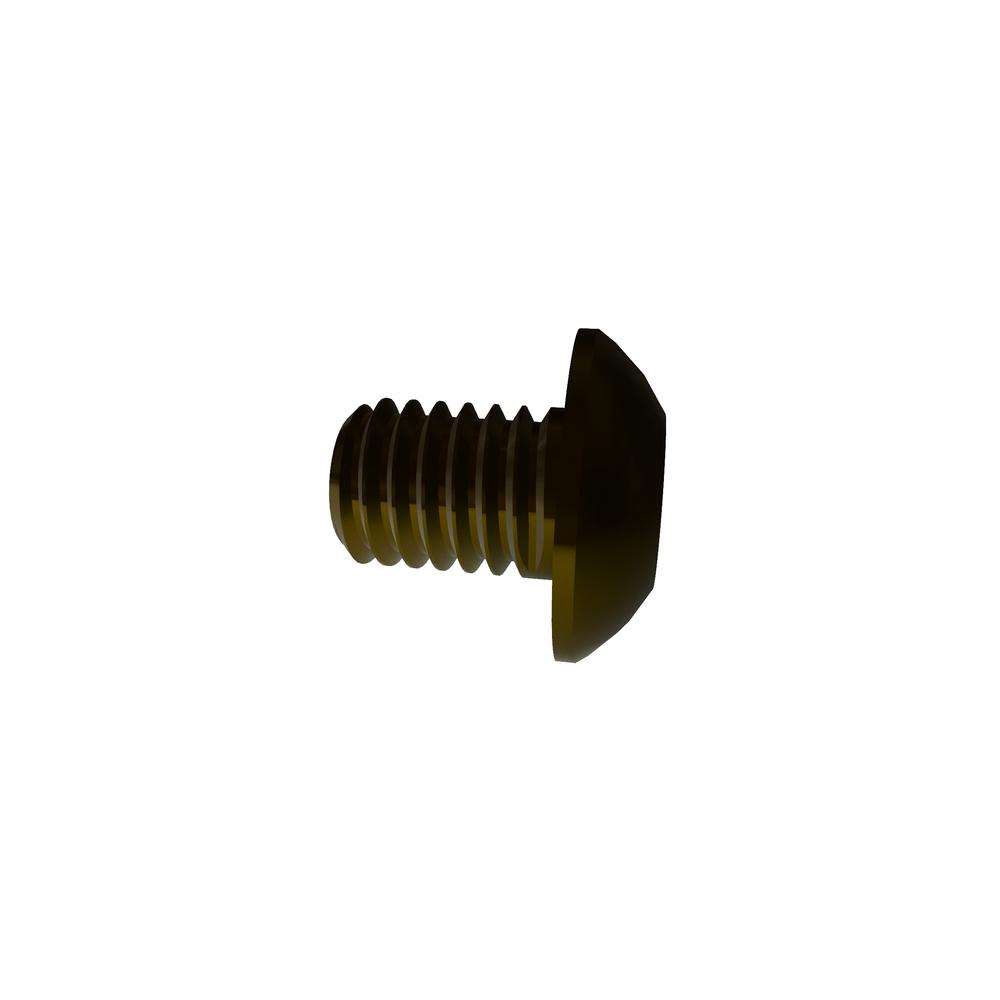

10F25BHCB
10-32 X 1/4 BUT SOC BRASS RoHS
Alternate Codes: 97715A213
Pricing per Unit
| 1-99 pcs |
|---|
| $0.849 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | Brass |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.210in |
| Fillet Transition Diameter (Max.) | 0.220in |
| Head Side Height (Ref.) | 0.020in |
| Key Engagement | 0.070in |
| Brand | VARIED |
| Additional Industry Cross Reference | 97715A213 |
| Length | 1/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.361in |
| Head Diameter (Min.) | 0.347in |
| Head Height (Max.) | 0.101in |
| Head Height (Min.) | 0.091in |
| Hex Socket Size | 0.125in |
