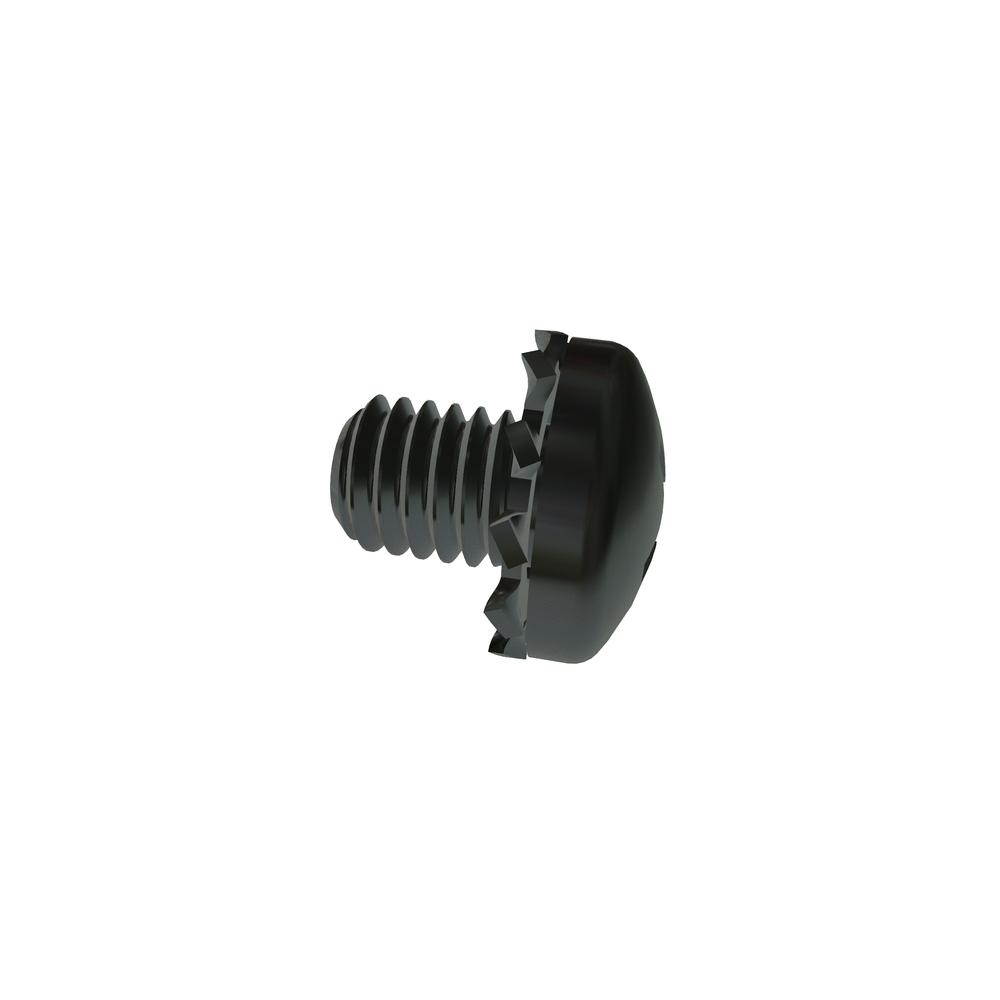

10F25PPEZR
10-32 X 1/4 PHIL PAN EXT SEMS STL ZN CR3
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.312 | $0.164 | $0.130 | $0.120 | $0.101 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.024in |
| Lock Washer Outside Diameter (Min.) | 0.365in |
| Lock Washer Outside Diameter (Max.) | 0.381in |
| Washer Type | External Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.089in |
| Penetration Depth (Max.) | 0.113in |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Brand | VARIED |
| Length | 1/4in |
| Lock Washer Thickness (Min.) | 0.018in |
