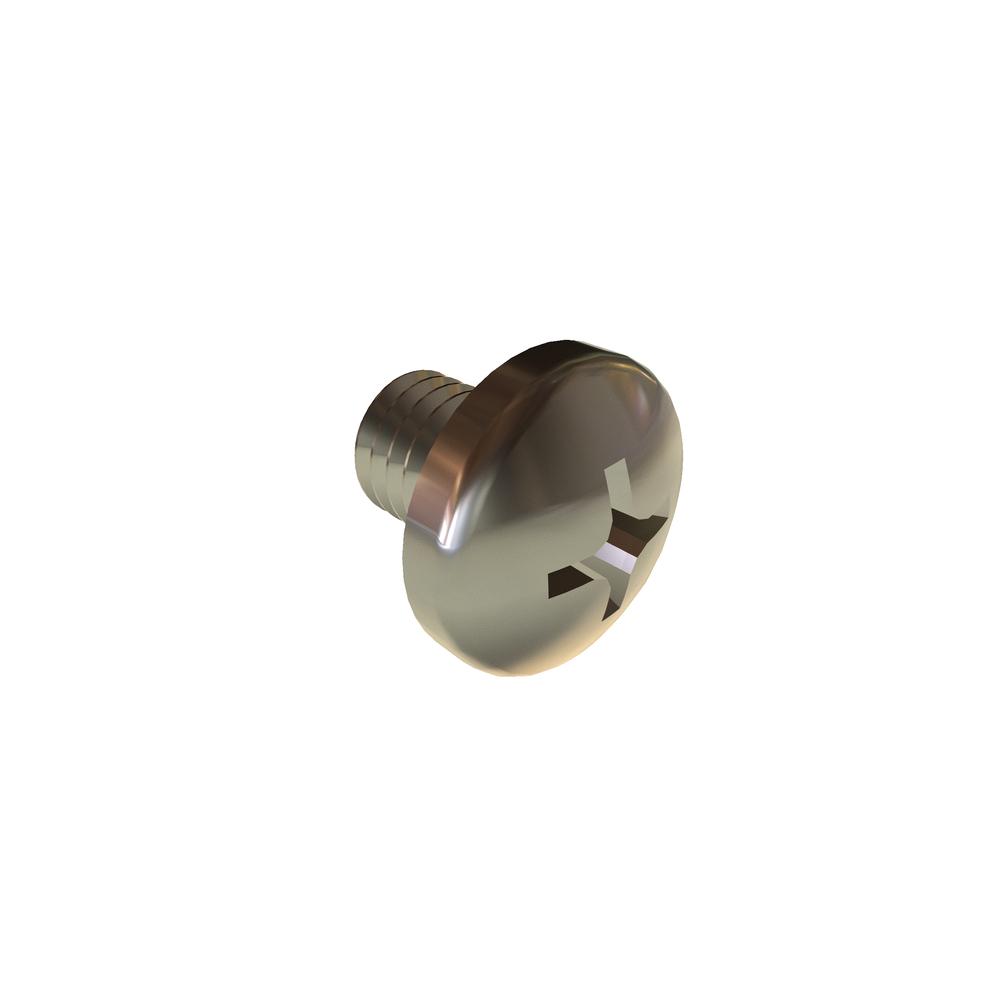

10F25PPMS
10-32 X 1/4 PH PAN SST RoHS
Alternate Codes: 001126, 030496.0001, 25-0020-04, 2801-0117-04, 2806-0117-04, MS51958-59, MS51958-59 MILSPEC
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.224 | $0.134 | $0.112 | $0.092 | $0.081 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.192in |
| Head Radius (Min.) | 0.020in |
| Recess Depth (Min.) | 0.089in |
| Recess Depth (Max.) | 0.113in |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.3 |
