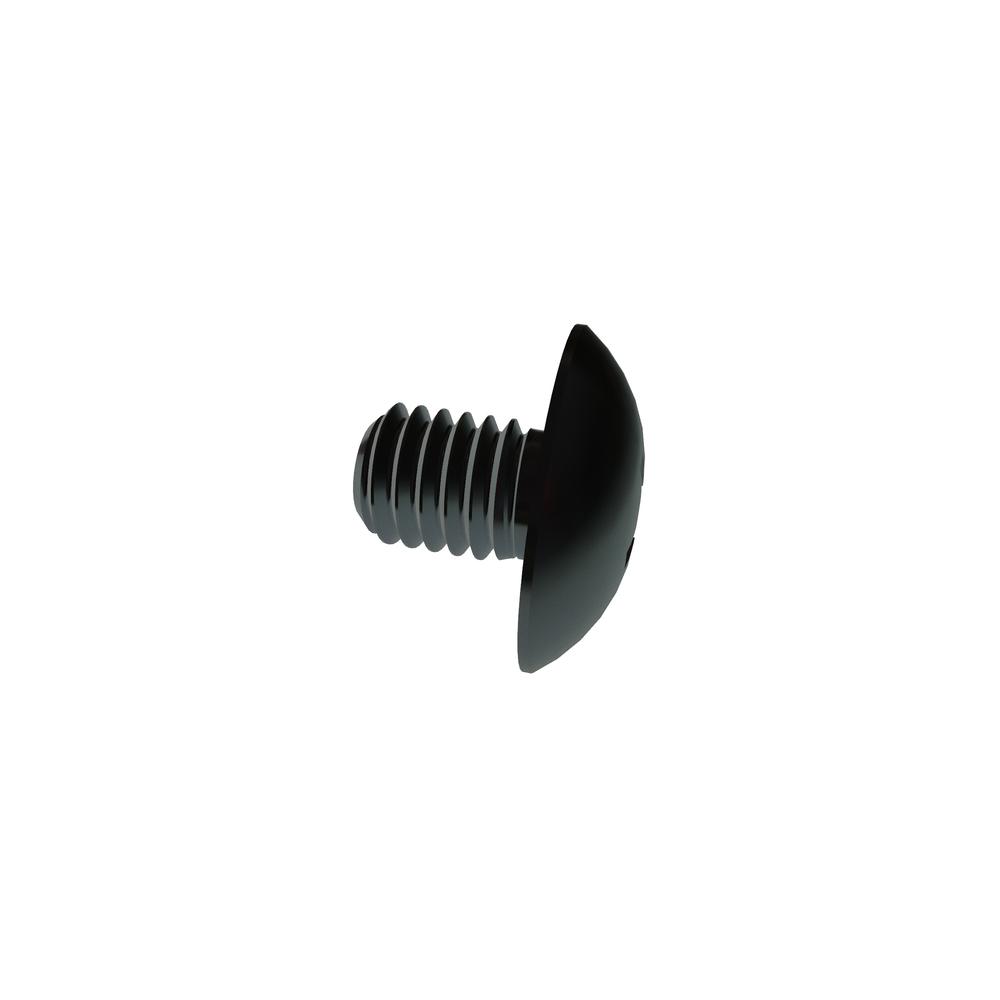

10-32 X 1/4 PHIL TRUSS STL ZN CR3
10F25PTMZR
| Item Id | 10F25PTMZR |
| Description | 10-32 X 1/4 PHIL TRUSS STL ZN RoHS |
| Alternate Codes | 10F25PTMZt |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.448in |
| Head Diameter (Min.) | 0.425in |
| Head Height (Max.) | 0.118in |
| Head Height (Min.) | 0.103in |
| Head Radius (Min.) | 0.283in |
| Head Type | Truss |
| Length | 0.25in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.190in |
| Recess Depth (Max.) | 0.104in |
| Recess Depth (Min.) | 0.079in |
| Recess Diameter | 0.181in |
| RoHS | Compliant |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
