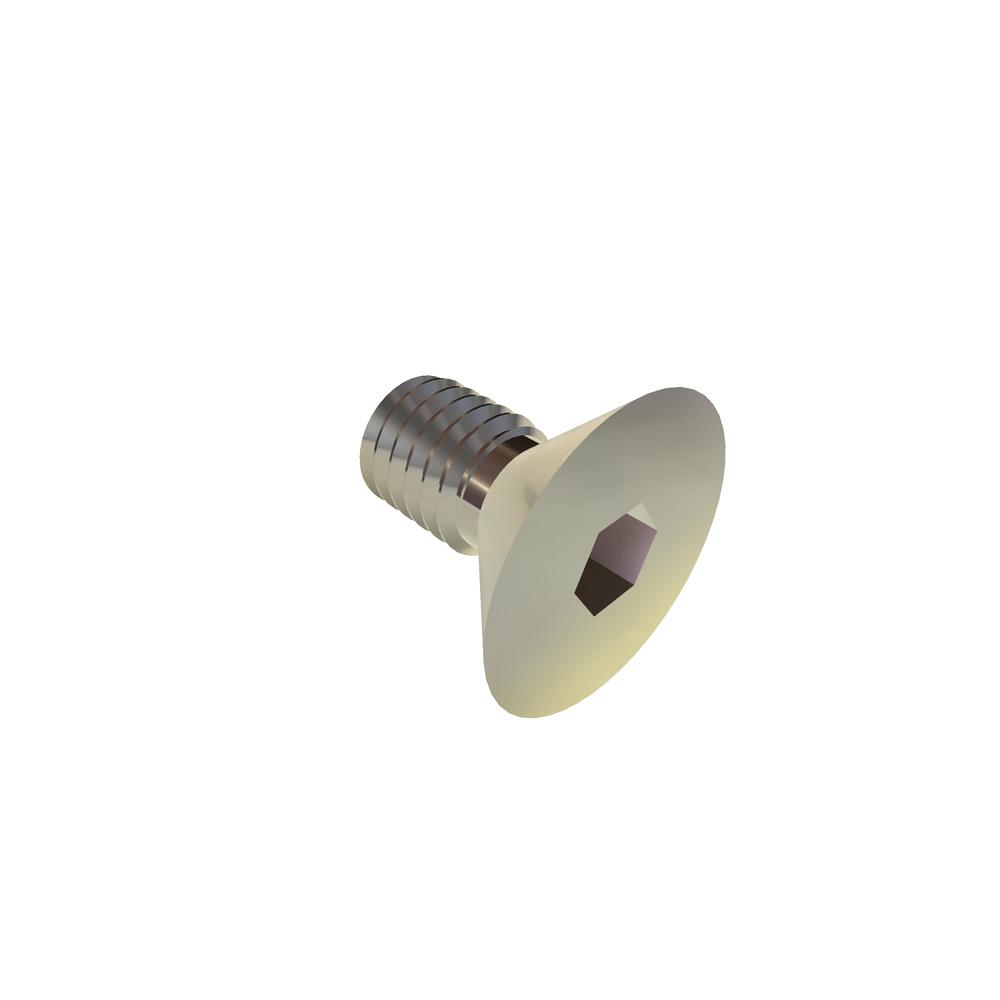

10F37FHCS
10-32 X 3/8 FLAT SOC SST RoHS
Alternate Codes: 005232, 780-00281
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.851 | $0.468 | $0.390 | $0.334 | $0.275 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Head Type | Flat |
| Drive Type | Hex Socket |
| Key Engagement | 0.087in |
| Body Diameter (Min.) | 0.184in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92210A301 |
| Length | 3/8in |
| RoHS | Compliant |
| Body Diameter (Max.) | 0.190in |
| Head Diameter (Max.) | 0.411in |
| Head Diameter (Min.) | 0.359in |
| Head Height (Min.) | 0.127in |
| Hex Socket Size | 1/8in |
