Image for reference purposes only. Actual product may vary.

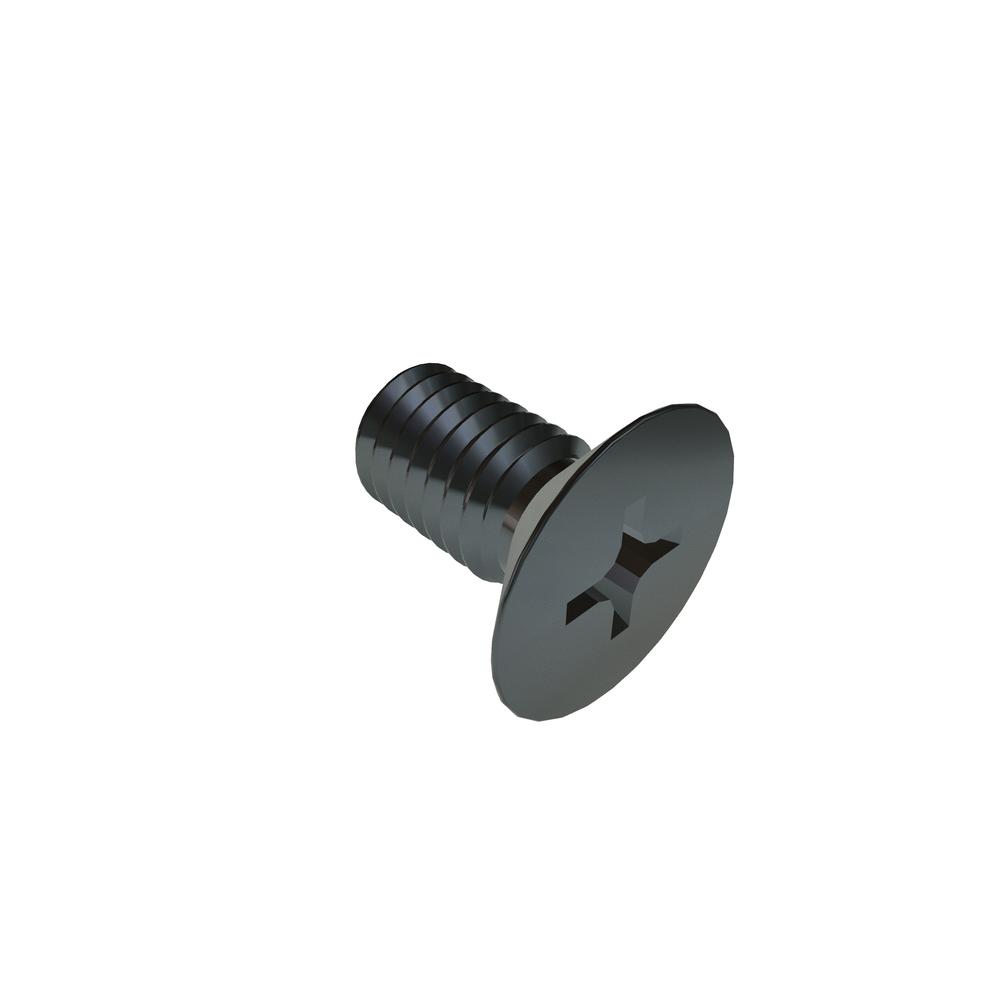

10F37PFHZR/P
10-32 X 3/8 PHIL FLAT 100 DEG PATCH STL
Alternate Codes: N/A
10-32 X 3/8 Phillips FLAT Head 100 Degree PATCH Steel zinc plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.718 | $0.395 | $0.329 | $0.282 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.190in |
| Length | 3/8in |
| Thread Size | 10-32 |
| Finish | Zinc Cr3 |
| Material | Steel |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Head Type | Flat 100 Degree |
| Drive Size | 2 |
| Recess Diameter | 0.178in |
| Head Height | 0.083in |
| Recess Depth (Min.) | 0.082in |
| Recess Depth (Max.) | 0.105in |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.362in |
| Head Diameter (Min.) | 0.329in |
